Easun Power 7KW Solar Inverter 110A MPPT Solar Controller Built -in WiFi

Bespaar $55.01 Bespaar $55.01
Oorspronkelijke prijs $425.00
Oorspronkelijke prijs $425.00 - Oorspronkelijke prijs $425.00
Oorspronkelijke prijs $425.00
Huidige prijs $369.99
$369.99 - $369.99
Huidige prijs $369.99

Key Feature

MPPT Pure Sine Wave 110A Solar Charge Controller 48V 220V 50Hz/60Hz Off Grid Inverter With Wifi

Free shipping

Free returns

NO VAT

Secure payments

Ship From: EU
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

This inverter have enough stock in EU now, please buy it immediately.

 Attention: This model belongs to high PV input, but remember to connect the battery for the inverter to work properly,

Note:

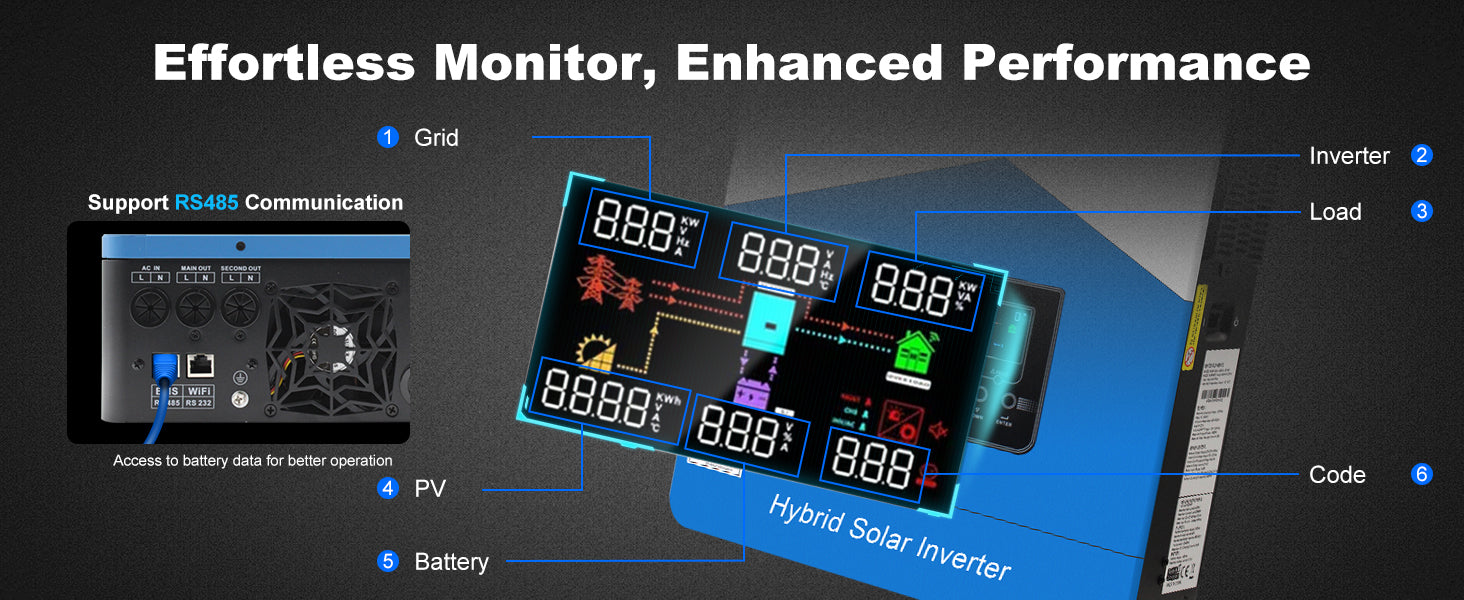

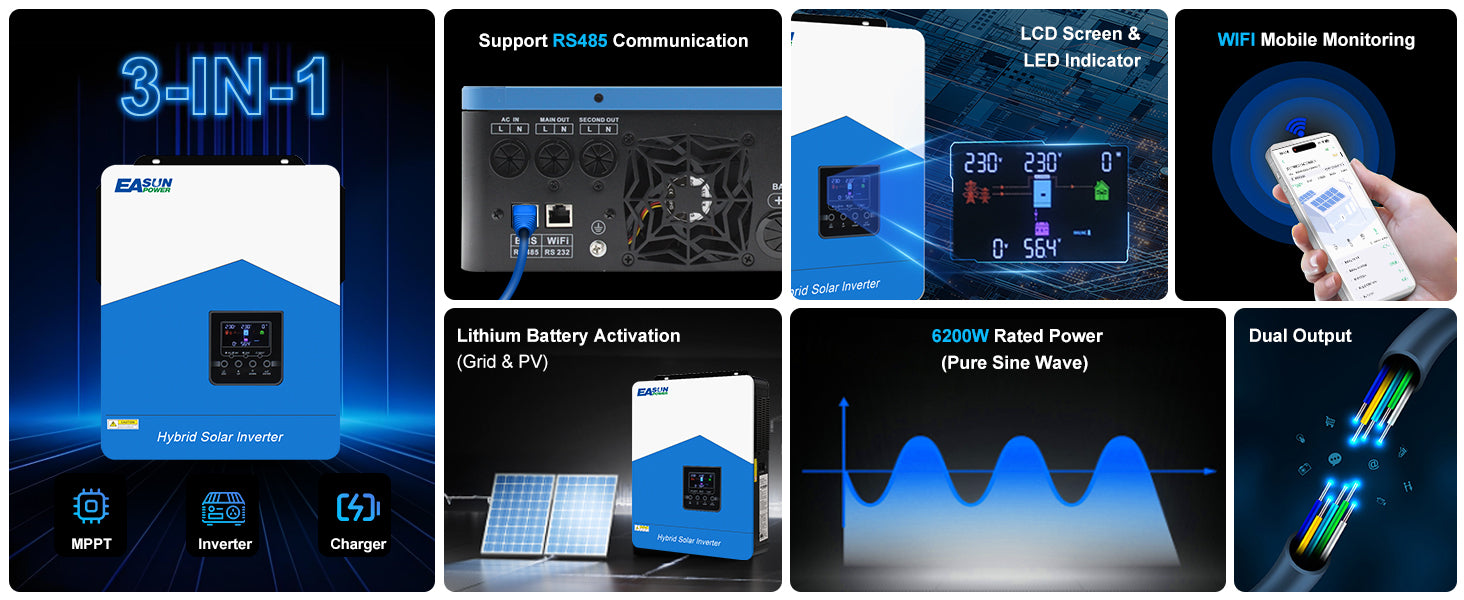

The inverter contains WIFI module, which can be matched with the inverter and does not need to be purchased separately.

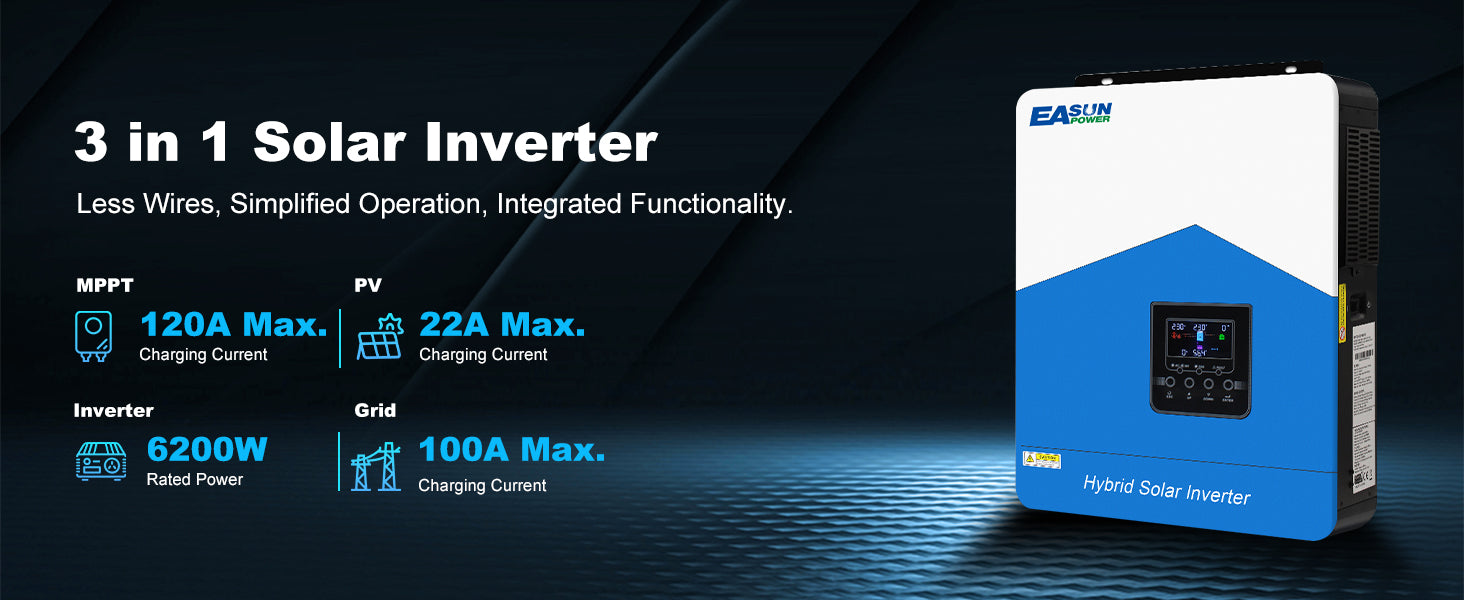

Pure sine wave inverter
6KW MPPT
Solar charger of the maximum charging current is 110A
55-450V wide PV input

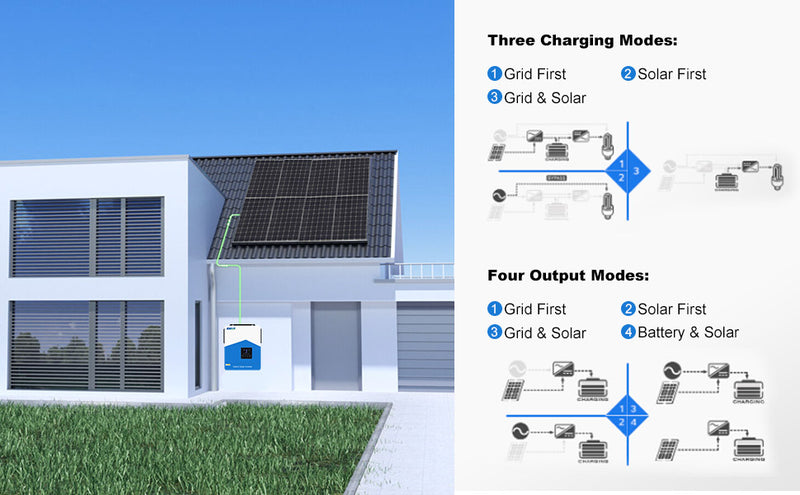

Generate power from PV directly to supply load, even without battery
PV to AC efficiency is much higher

Models

ISolar-SMH-II-4.2KW

ISolar-SMH-II-7KW

Rated Power

4200VA/3800W

7000VA/6200W

INPUT

Voltage

230Vac

Selectable Voltage Range

(170Vac~280Vac) ±2%;(90Vac-280Vac)±2%

Frequency Range

50Hz/ 60Hz (Auto detection)

OUTPUT

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

8000VA

14000VA

Transfer Time

10ms (for personal computers) / 20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

24VDC

48VDC

Floating Charge Voltage

27VDC

54VDC

Overcharge Protection

31VDC

61VDC

Maximum charge current

80A

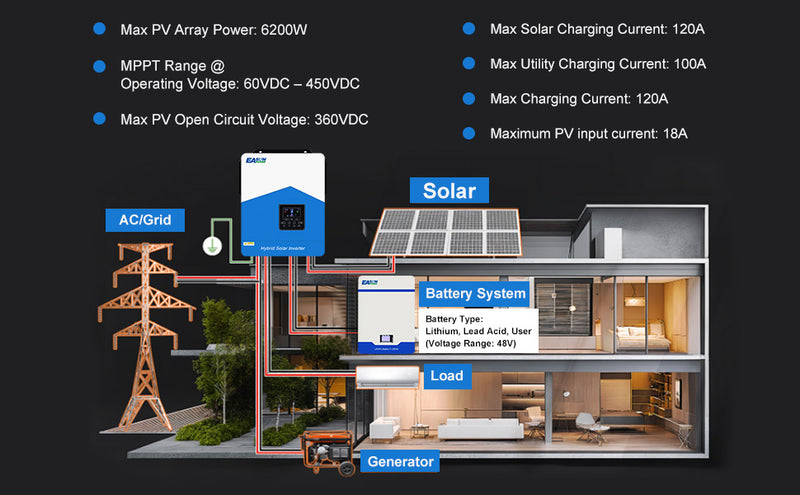

SOLAR CHARGER

MAX.PV Array Power

6000W

6000W

MPPT Range@ Operating Voltage

55-450VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

110A

Maximum Efficiency

98%

PHYSICAL

Dimension.D*W*H(mm)

423*290*100mm

423*310*120mm

Net Weight (kgs)

7.0kg

8.0kg

Communication Interface

RS232/RS485(Standard) / GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10°C to 55°C

Storage Temperature

-15°C to 60°C
