Easun Power 6.2KP Off Grid Inverter 120A MPPT Solar Charge Controller With Wifi

Save $269.00 Save $269.00
Original price $668.00
Original price $668.00 - Original price $668.00
Original price $668.00
Current price $399.00
$399.00 - $399.00
Current price $399.00

Key Feature

-Pure sine wave
-Powerfactor1.0
-PVinput 500Vdc Max
-Built-in MPPT 120A
-Capable to work without battery

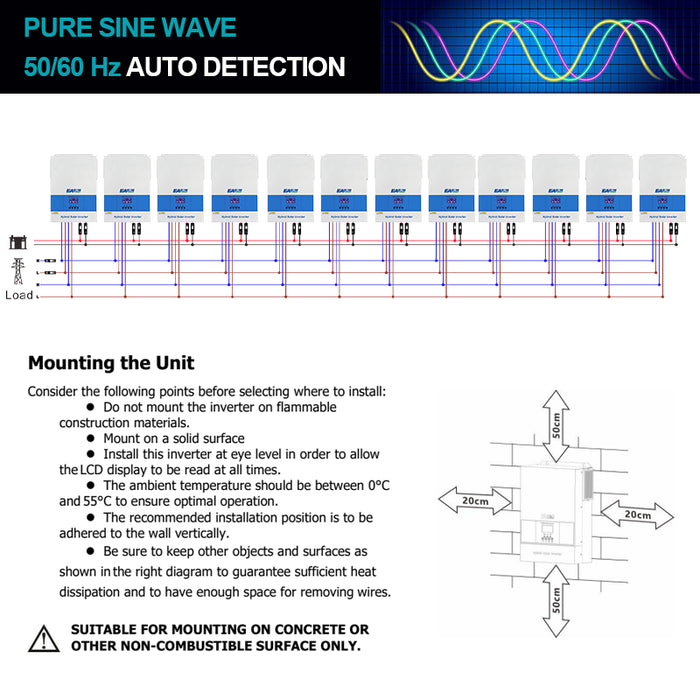

-Parallel operation up to12 units in 1 phase or 3 phase

Free shipping

Free returns

NO VAT

Secure payments

Ship From: EU
Request a quote

Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

Off-Grid Powerhouse for Remote Locations

The Easun Power 6.2KP off-grid inverter with 120A MPPT solar charge controller is designed to be the ultimate energy solution for remote homes, cabins, RV's and more. With its pure sine wave output, built-in solar charge controller, and robust construction, it provides reliable and efficient power completely independent of the grid.

Pure Sine Wave Power for Sensitive Electronics

This inverter produces a pure sine wave output, which is vital for running sensitive electronics and appliances without any disruption or damage. The smooth and stable power allows you to run devices like computers, TVs, microwaves, etc seamlessly off-grid.

High-Efficiency MPPT Solar Charging

An integrated maximum power point tracking (MPPT) solar charge controller ensures you get the absolute most out of your solar panels. By tracking the optimal voltage and current, it can harvest 30% more power compared to PWM controllers. The high 120A rating supports large solar arrays up to 6500W.

Optimize Batteries with Equalization

The inverter equalization function brings faded batteries back to life by periodically applying an equalization voltage to eliminate sulfation and stratification. This restores each cell to an equal state of charge, optimizing battery performance and extending overall lifespan.

Reliable Construction for Harsh Conditions

With its sturdy metal casing, sealed design and included anti-dust kit, it is specially built to survive harsh off-grid environments like deserts, mountains and marine applications. Advanced load management and cooling systems prevent overheating and overload failures.

Intuitive Monitoring and Control

The easy-to-use LCD display offers at-a-glance system metrics and settings customization. WiFi/GPRS connectivity sends data to mobile apps for instant remote monitoring and alerts. RS232/485 ports allow integration with external battery management systems.

Get the off-grid powerhouse designed for performance, efficiency and reliability with the Easun Power 6.2KP Inverter & 120A Solar Charge Controller. It's time to gain energy independence!

Have stock in EU now, we can shipping quickly and no need pay tax in European.

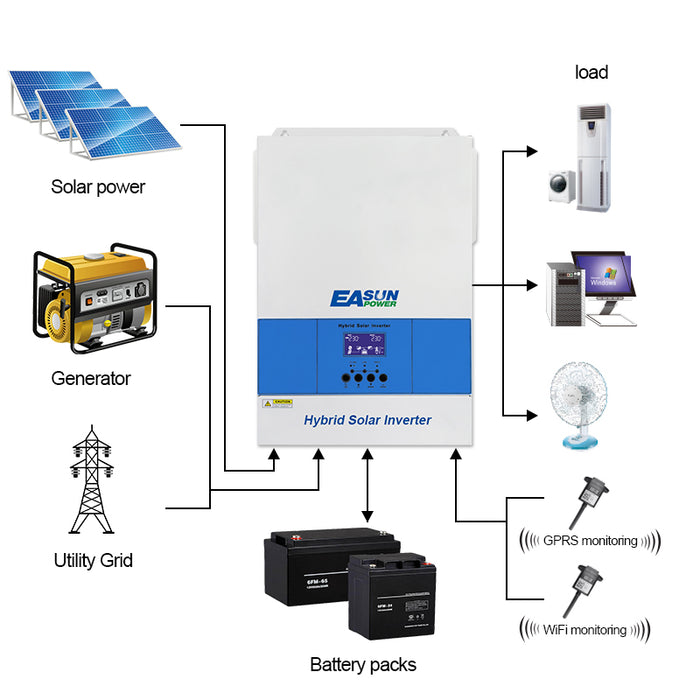

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Support connect lithium battery, communication with BMS port is RS232.

MODEL

ISolar SMG II 6.2KP 48V WiFi

Capacity

6.2KVA/6.2KW

Parallel Capability

YES,12 Units

INPUT



Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280vac(For Home Appliances)

Frequency

50/60 Hz(Auto sensing)

OUTPUT



Nominal Voltage

220/230VAC+5%

Surge Power

12400VA

Frequency

50/60Hz

Waveform

Pure Sine wave

Peak Eficiency(PV to INV)

96%

Peak Efficiency(Battery to INV)

93%

Crest Factor

3:1

BATTERY



Battery Voltage

48VDC

Floatig Charge Volage

54VDC

OverCharge Protectin

63VDC

Charging Method

CC/ CV

Solar Charger & AC Charger

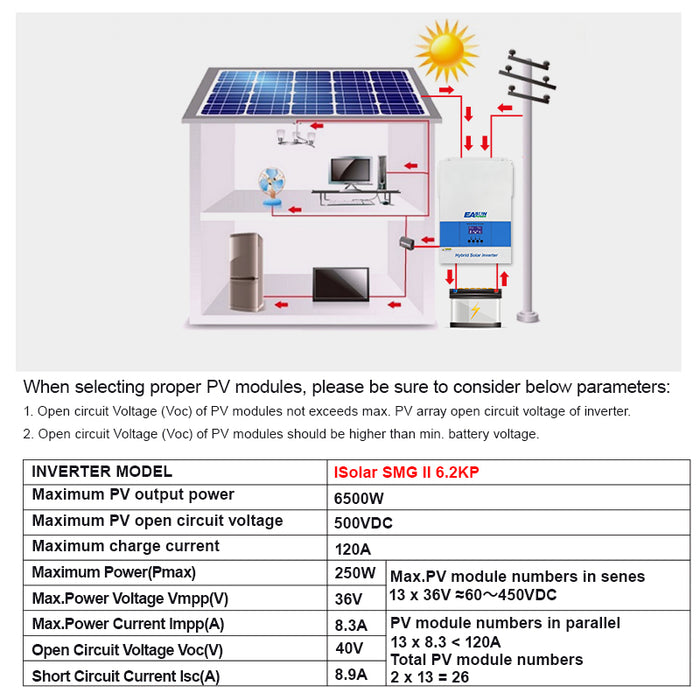

Max.PV Array Power

6500W

Max.PV Array Open Circuit Voltage

500VDC

PV Array MPPT Voltage Range

60VDC~450VDC

Max.Solar Input Current

27A

Max.Solar Charge Current

120A

Max.AC Charge Current

80A

Max.Charge Current

120A

PHYSICAL



Dimensions,D x W x H(mm)

450*300*130

Package Dimensions,D x W x H(mm)

540x390x210

Net Weight(Kg)

12

Communication Interface

RS232 / RS485 / Dry-contact

ENVIRONMENT



Operating Temperature Range

(-10°C to 50°C)

Storage Temperature

(-15°C ~ 50°C)

Humidity

5% to 95% Relative Humidity ( Non-condensing )


easun power 8000w


Note: The inverter includes WiFi, which can be connected to mobile phone APP monitoring



Features:

*pure sine wave soalr inverter

*Output power factor 1

*High PV input voltage range

*Built-in MPPT soalr controller

*Battery equalization function to optimize

 Battery performance and extend lifecycle

*Inverter running without barrery

*Built-in anti-dusk kit for harsh environment

*WIFI-GPRS remote monitoring (WIFI Plug included)

*Detachable LCD(Optional)

* Built-in Parallel Kit
