Easun Power 4.2KW Solar Inverter 110A MPPT Solar Charge Controller Pure Sine Wave 500VDC 24V 220V 50Hz/60Hz Off Grid Inverter With Wifi Module Ship From EU

Save $27.49 Save $27.49
Original price $355.99
Original price $355.99 - Original price $355.99
Original price $355.99
Current price $328.50
$328.50 - $328.50
Current price $328.50

Free shipping

Free returns

NO VAT

Secure payments

Ship From: Germany
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

This inverter have enough stock in EU now, please buy it immediately.
 Attention: This model belongs to high PV input, but remember to connect the battery for the inverter to work properly,

Note:

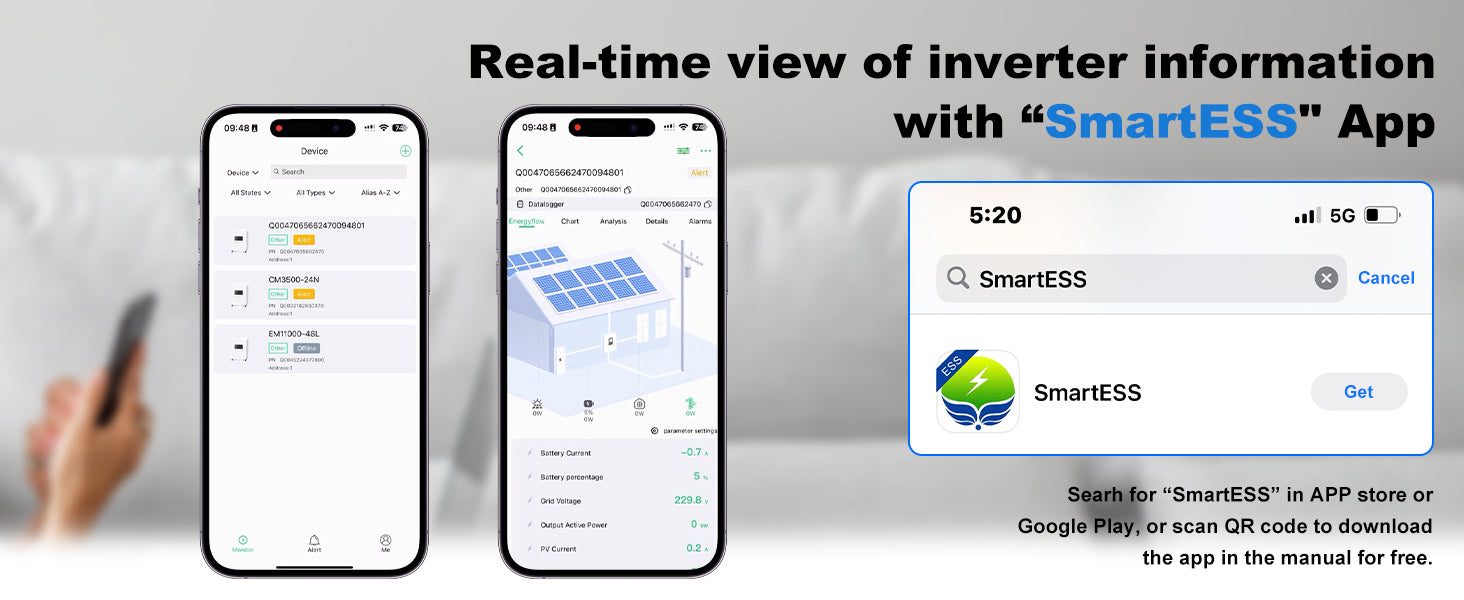

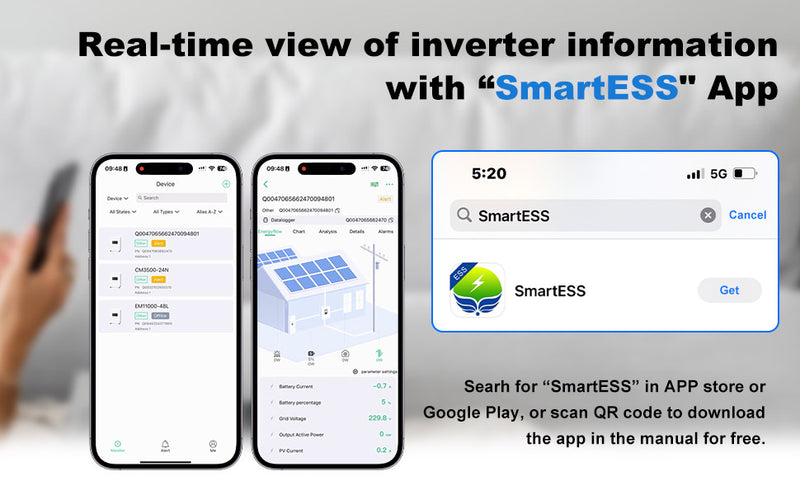

The inverter contains WIFI module, which can be matched with the inverter and does not need to be purchased separately.

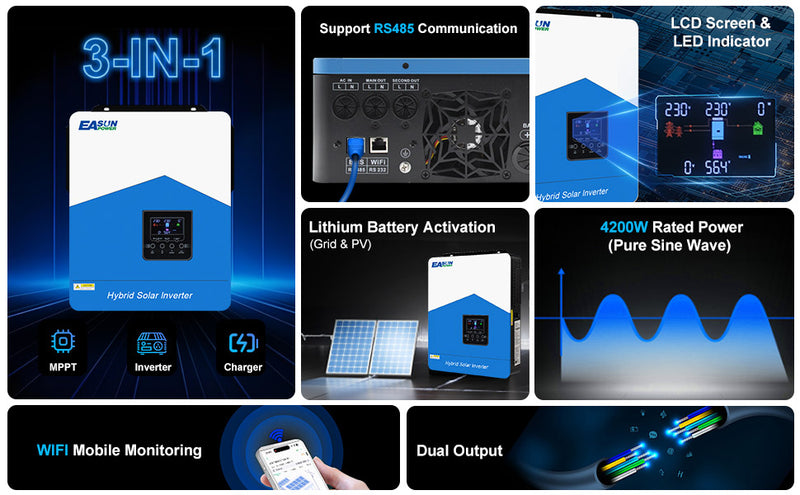

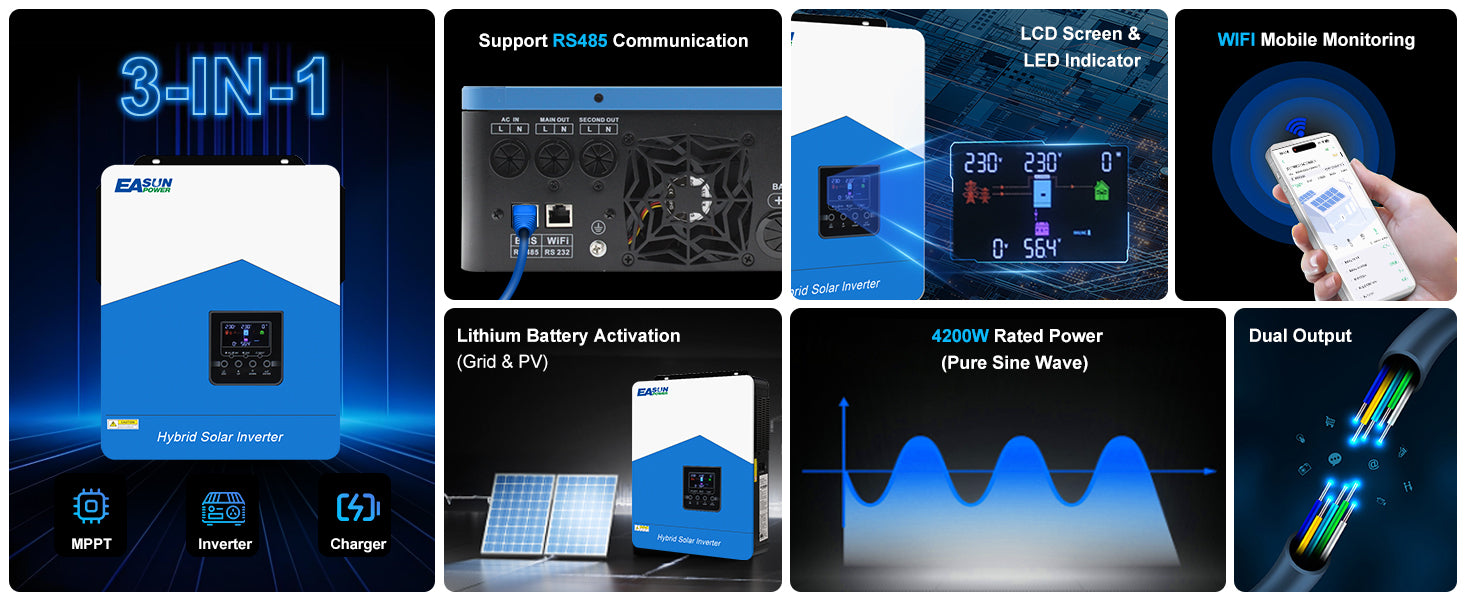

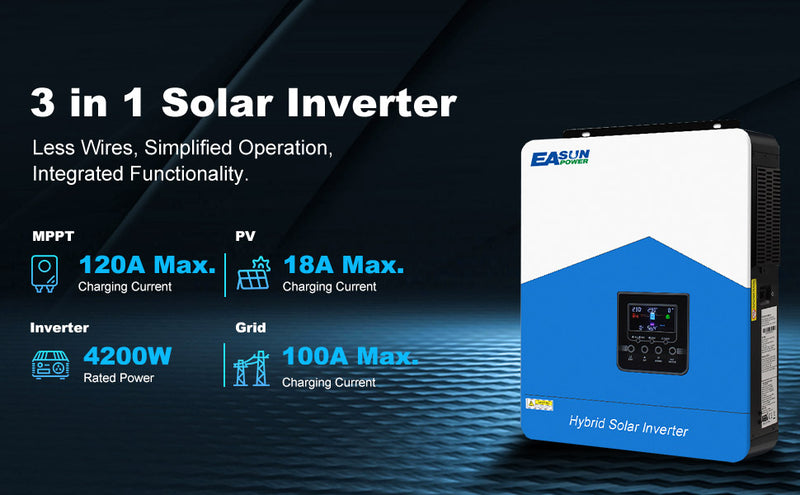

4.2KW Hybrid Solar Inverter MPPT Pure Sine Wave 110A Solar Charge Controller 24V 220V 50Hz/60Hz Off Grid Inverter With Wifi Mode

Features:
1.Pure sine wave inverter,Can work no battery
Generate power from PV directly to supply load, even without battery PV to AC efficiency is much higher
2.Configurable input voltage for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting

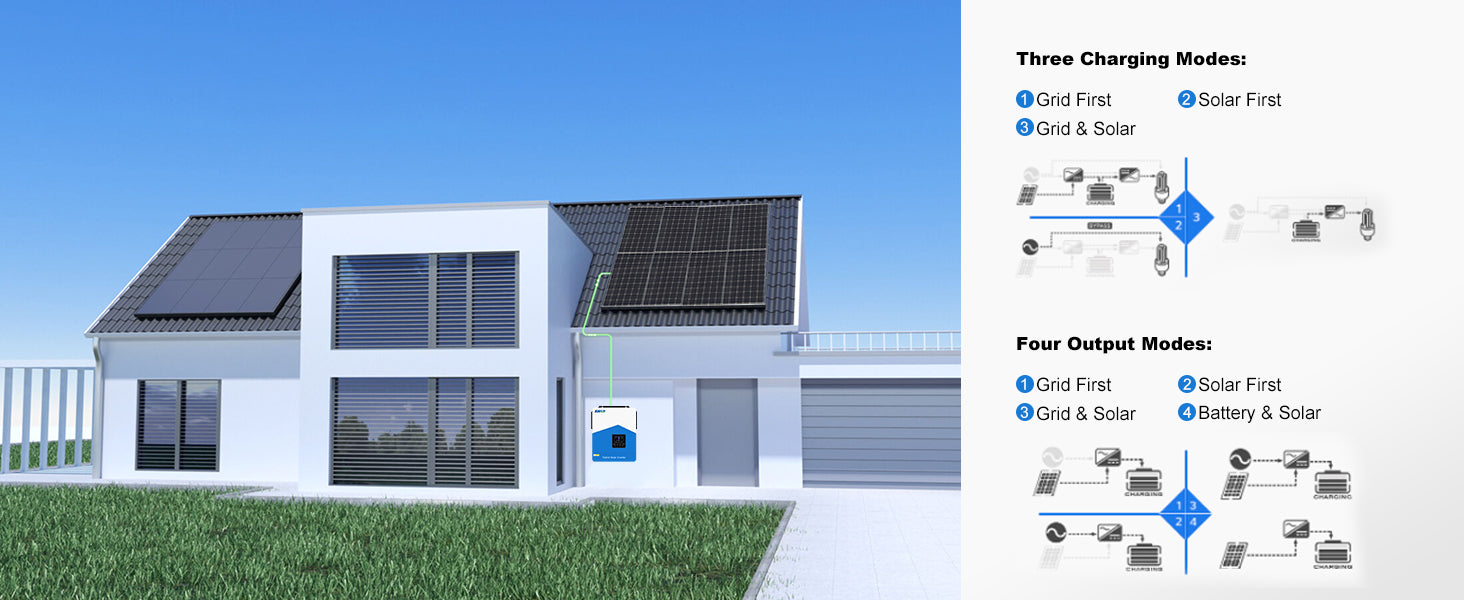

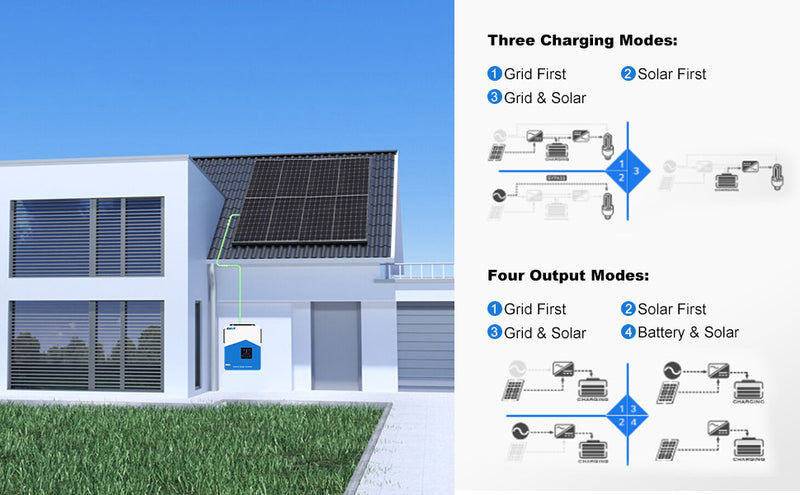

4.Configurable AC/Solar Charging priority via LCD setting
5.Auto restart while AC is recovering
6.Overload/Over temperature/short circuit protection
7.Smart battery charger design for optimized battery performance
8.Cold start function
9.6000W MPPT PV Inpuit,55-450V wide PV input ,Lithium battery
The dust kit needs to be purchased additionally


Models

ISolar-SMH-II-4.2KW

ISolar-SMH-II-7KW

Rated Power

4200VA/3800W

7000VA/6200W

INPUT

Voltage

230Vac

Selectable Voltage Range

(170Vac~280Vac) ±2%;(90Vac-280Vac)±2%

Frequency Range

50Hz/ 60Hz (Auto detection)

OUTPUT

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

8000VA

14000VA

Transfer Time

10ms (for personal computers) / 20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

24VDC

48VDC

Floating Charge Voltage

27VDC

54VDC

Overcharge Protection

31VDC

61VDC

Maximum charge current

80A

SOLAR CHARGER

MAX.PV Array Power

6000W

6000W

MPPT Range@ Operating Voltage

55-450VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

110A

Maximum Efficiency

98%

PHYSICAL

Dimension.D*W*H(mm)

423*290*100mm

423*310*120mm

Net Weight (kgs)

7.0kg

8.0kg

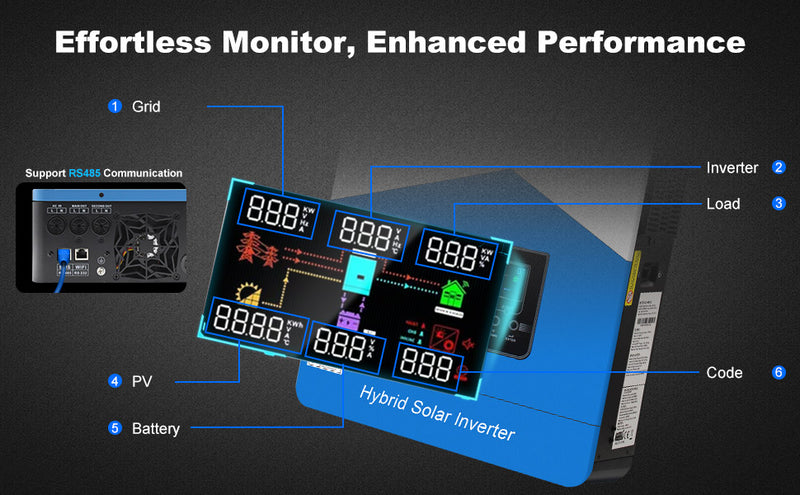

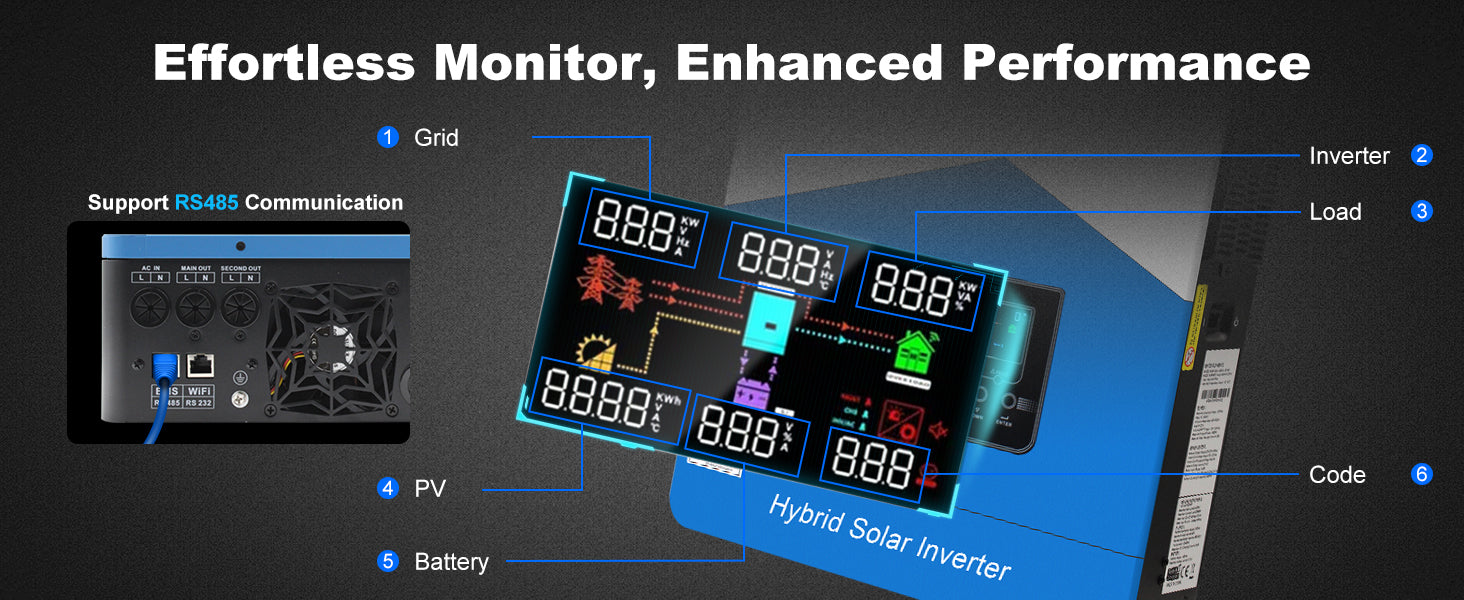

Communication Interface

RS232/RS485(Standard) / GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10°C to 55°C

Storage Temperature

-15°C to 60°C
