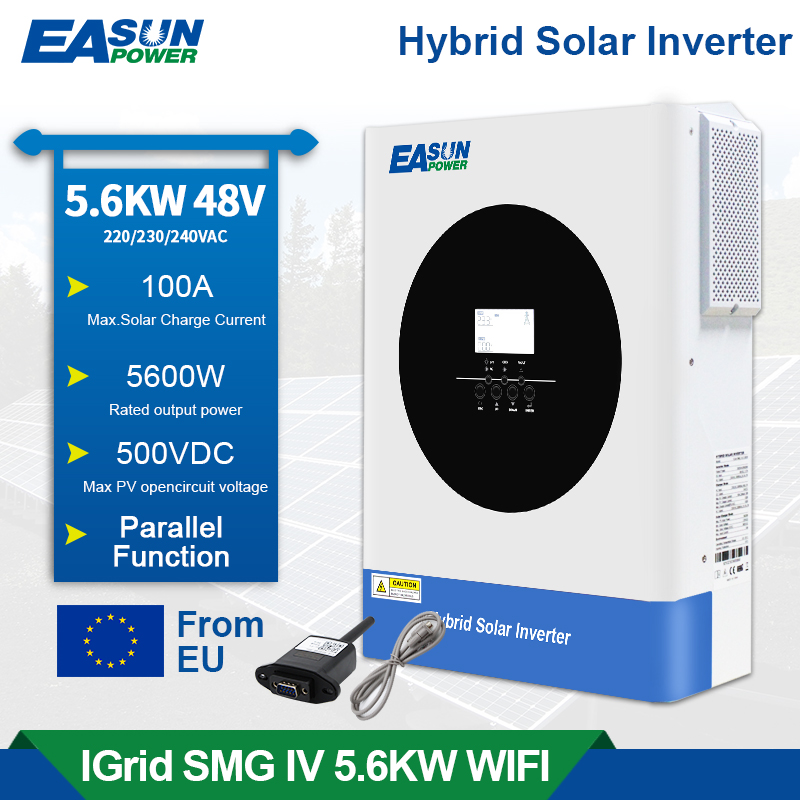

EASUN POWER Hybrid Soalr Inverter 500Vdc PV input 5600W Power MPPT 100A Charger 220VAC 48VDC Pure Sine Wave inverter With WiFI

Save $50.00 Save $50.00
Original price $585.00
Original price $585.00 - Original price $585.00
Original price $585.00
Current price $535.00
$535.00 - $535.00
Current price $535.00

Free shipping

Free returns

NO VAT

Secure payments

Ship From: China
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

New pre-sale EASUN POWER Hybrid Soalr Inverter 500Vdc PV input  5600W Power MPPT 100A Charger 220VAC 48VDC Pure Sine Wave inverter With WiFI from China

hybrid solarNote: The inverter includes WiFi, which can be connected to mobile phone APP monitoring

Features:

*pure sine wave soalr inverter

*Output power factor 1

*High PV input voltage range

*Built-in MPPT soalr controller

*Battery equalization function to optimize

 Battery performance and extend lifecycle

*Inverter running without barrery

*Built-in anti-dusk kit for harsh environment

*WIFI-GPRS remote monitoring (WIFI Plug included)

*Detachable LCD(Optional)

* Built-in Parallel Kit

MODEL

IGrid-SMG-IV-5.6KW

PHASE

1-Phase or 3-Phase

MAXIMUM PVINPUT POWER

6000W

RATED OUTPUT POWER

5600VA / 5600W

MAXIMUM CHARGING POWER

5600W

GRID-TIE OPERATION



PV INPUT (DC)



Nominal DC Voltage / Maximum DC Voltaqe

360VDC / 500VDC

Start-up Voltage / lnitial Feeding Voltage

150VDC / 120VDC

MPPT Voltage Range

120VDC- 450VDC

Number of MPPT Trackers / Maximum Input Current

1 / 18A

GRID OUTPUT (AC)



Nominal Output Voltage

220 / 230 / 240VAC

Output Voltage Range

170-280VAC or 90-280VAC

Nominal Output Current

23.9A

Power Factor

0.6-1 (inductive or capacitive)

EFFICIENCY



Maximum Conversion Efficiency (DC/AC)

94%

OFF-GRID OPERATION



ACINPUT



AC Start-up Voltage / Auto Restart Voltage

100Vac / 90Vac

Acceptable Input Voltage Range

170-280VAC or 90-280VAC

Maximum AC Input Current

40A

PV INPUT (DC)



Maximum DC Voltage

500VDC

MPPT Voltage Range

120VDC~450VDC

Number of MPPT Trackers / Maximum Input Current

100A

BATTERY MODE OUTPUT (AC)



Nominal Output Voltage

220/230/240VAC

Output Waveform

Pure Sine wave

Efficiency (DC to AC)

94%

HYBRID OPERATION



PV INPUT (DC)



Nominal DC Voltage / Maximum DC Voltage

360VDC/500VDC

Start-up Voltage / lnitial Feeding Voltage

150VDC/120VDC

MPPT Voltage Range

120VDC-450VDC

Number of MPPT Trackers / Maximum Input Current

1/18A

GRID OUTPUT (AC)



Nominal Output Voltage

220/230/240VAC

Output Voltage Range

170-280VAC or 90-280VAC

Nominal Output Current

22.7A

AC INPUT



AC Start-up Voltage / Auto Restart Voltage

100Vac/90Vac

Acceptable Input Voltage Range

170-280VAC or 90-280VAC

Maximum ACInput Current

40A

BATTERY MODE OUTPUT (AC)



Nominal Output Voltage

48VDC

Efficiency (DC to AC)

94%

BATTERY & CHARGER



Nominal DC Voltage

48VDC

Maximum Solar Charging Current

100A

Maximum AC Charging Current

60A

Maximum Charging Current

100A

GENERAL



PHYSICAL



Dimension, D x W x H (mm)

448*315*122

Net Weight (kgs)

11

INTERFACE



Parallel Function

1-Phase Parallel*12 /3-Phase Parallel*12

Communication Port

RS232/RS485

ENVIRONMENT



Humidity

5%-95% Relative Humidity ( Non-condensing )

Operating Temperature

-10°C-55°C
