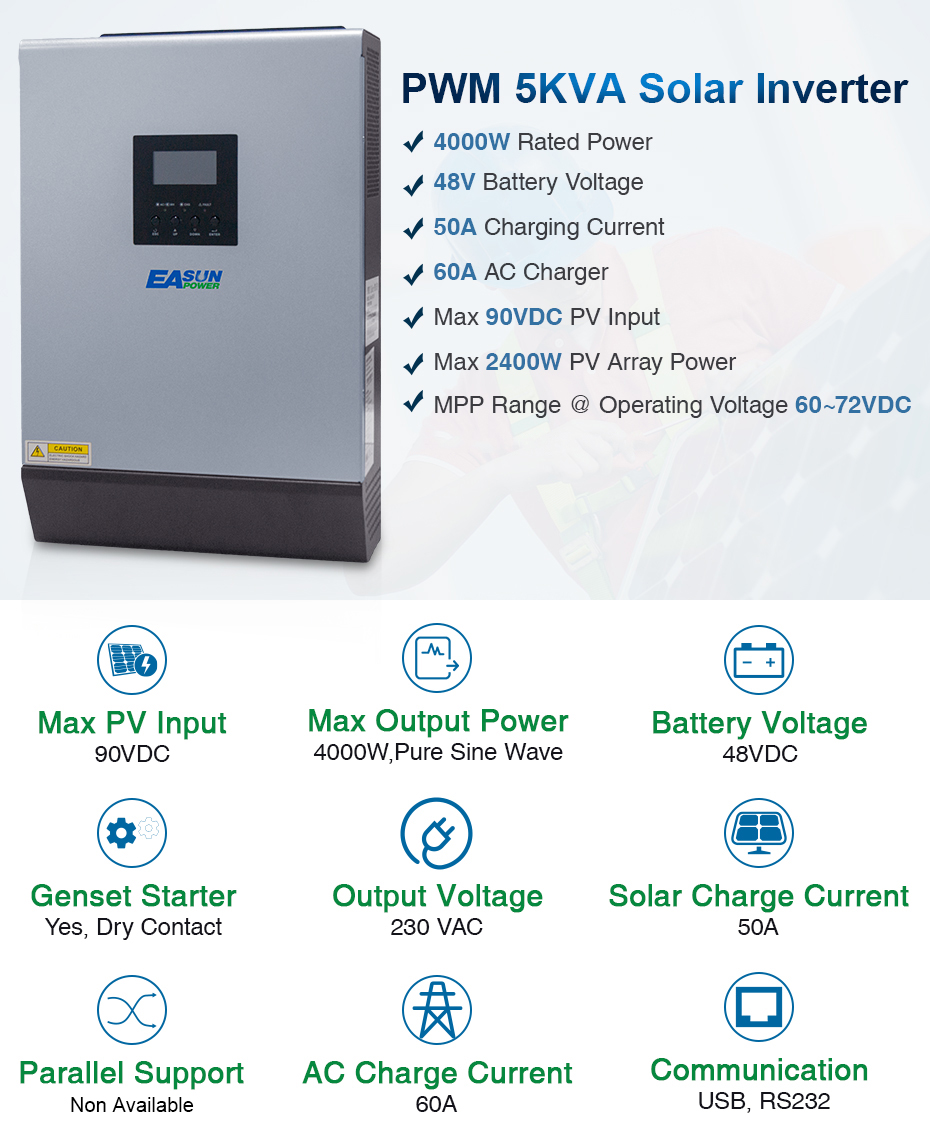

ISolar SPL 5KVA is a Competitive Cost 5KVA Continuous Surge, 48Vdc input Pure Sine Wave Inverter Charger
It is PWM Solar Inverter 5KVA 4000W Off Grid Inverter 48V to 220V 50A PWM Inverters Pure Sine Wave Inverter Hybrid Solar Inverter With 60A AC Charger Battery Charger For Home Use.
Design with ac input /output 220-240vac single phase only. ( not Split phase 110/220vac)
This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Featurs:
Pure sine wave inverter
Built-in PWM solar charge controller
Configurable input voltage range for home applicances and personal computers via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/over temperature/ short circuit protection
Smart charging system optimizes battery performance
Cold start function
|
MODEL
|
ISolar SPL 5K
|
|
Rated Power
|
5000VA/4000W
|
|
INPUT
|
|
|
Voltage
|
230VAC
|
|
Selectable Voltage Range
|
170-280 VAC(For Persongl Computers) ; 90-280 VAC(For Home Appliances)
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensig)
|
|
OUTPUT
|
|
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 5%
|
|
Sutge Power
|
10000VA
|
|
Efficiency(Peak)
|
93%
|
|
Transfer Time
|
10 ms (For Personal Computers) ; 20 ms (For home Appliances)
|
|
Waveform
|
Pure sine wave
|
|
BATTERY & AC CHARGER
|
|
|
Battery Voltage
|
48 VDC
|
|
Floating Charge Voltage
|
54 VDC
|
|
Overcharge Protection
|
60 VDC
|
|
Maximum Charge Current
|
60A
|
|
SOLAR CHARGER(OPTION)
|
|
|
Charging Current
|
50A
|
|

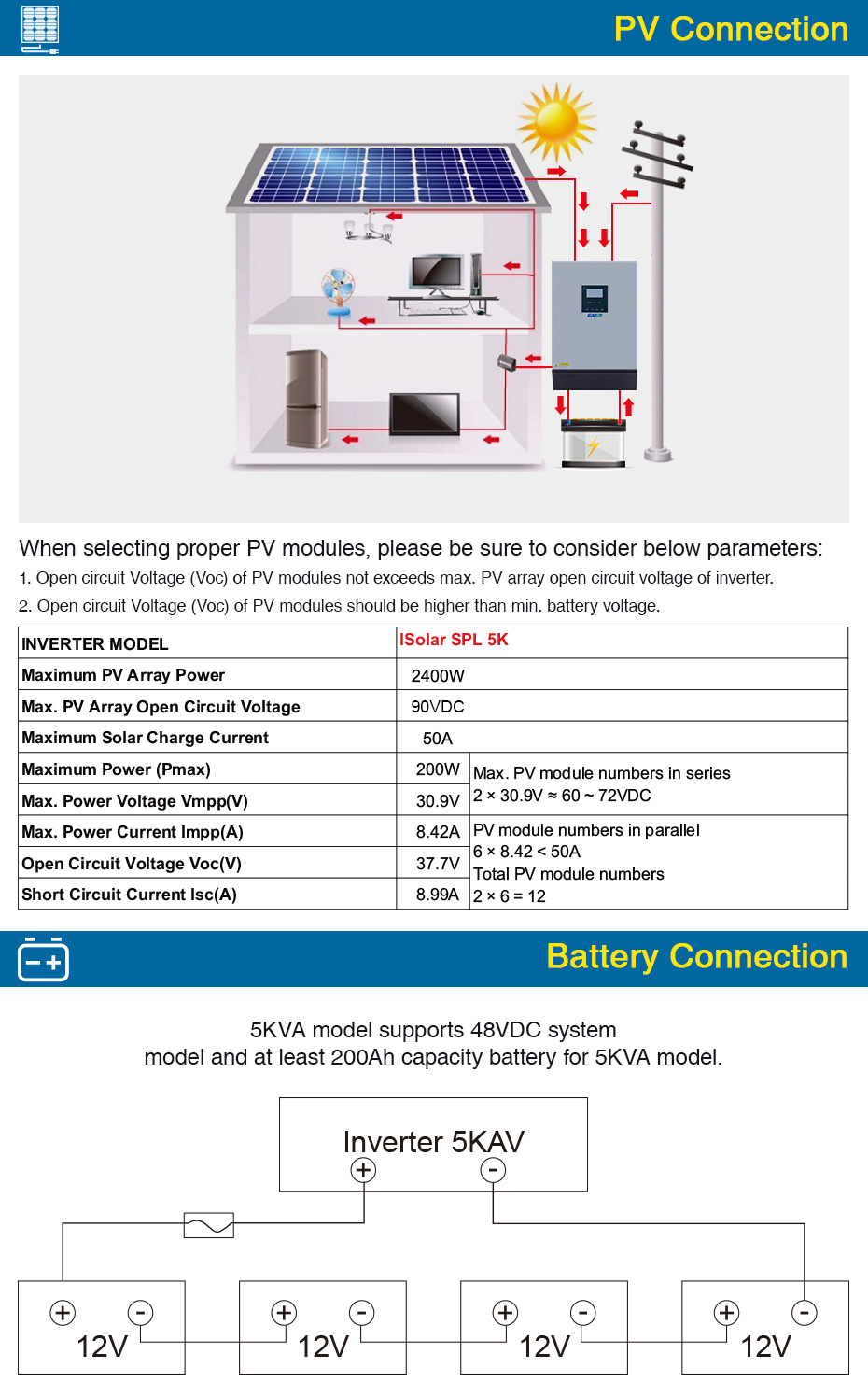

Maximum PV Array Power
|
2400W
|
|
Maximum PV Array Open Voltage
|
105 VDC
|
|
Standby Power Consumptio
|
2 W
|
|
PHYSICAL
|
|
|
Dimension,D×W×H (mm)
|
128×272×355
|
|
Net Weight(kgs)
|
9.8
|

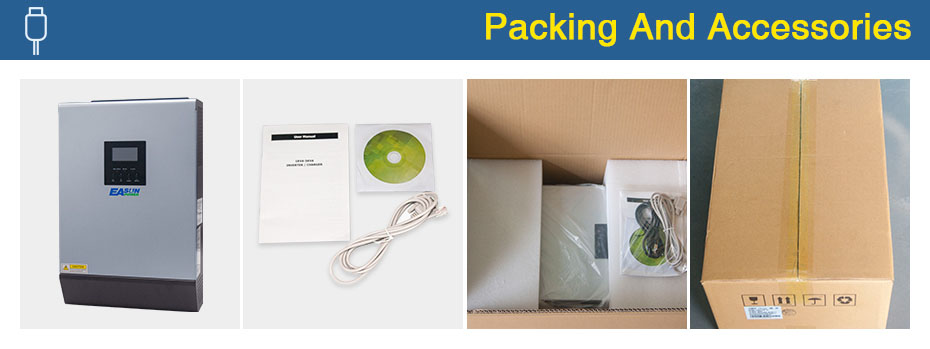

Package Including :
-
The unit x 1
-
User Manual(English) x 1
-
Communication cable x 1
-
Software CD x 1
