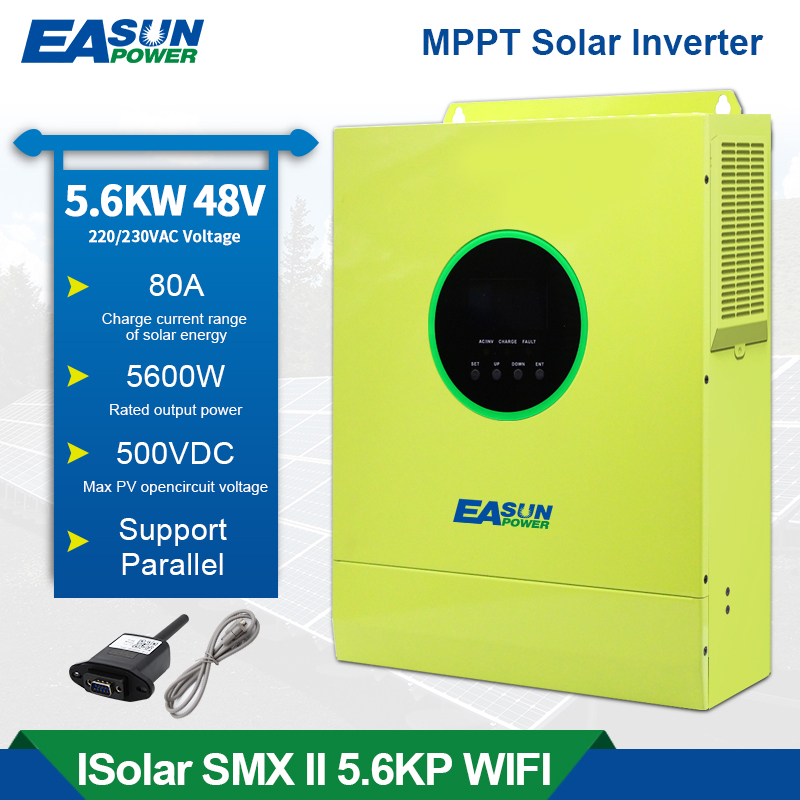

Easun Power 5.6KW Solar Inverter 80A MPPT Solar Charge Controller With Wifi

Save $55.01 Save $55.01
Original price $595.00
Original price $595.00 - Original price $595.00
Original price $595.00
Current price $539.99
$539.99 - $539.99
Current price $539.99

Key Feature

Free shipping

Free returns

NO VAT

Secure payments

Pre-sales from: Poland
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support


Note:
This product is expected to arrive in Europe in the middle of Sep., we have opened the pre-sale, if necessary, you can buy in advance, we will arrange for shipment according to the time of the order successively, the quantity is limited first-come-first-served!

The inverter contains WIFI module, which can be matched with the inverter and does not need to be purchased separately.

ISolar-SMX-II-5.6KP Support parallel operation and built-in parallel kits.
 ISolar-SMX-II-5.6KW  NO Support parallel operation
Please contact customer service for any questions

Easun Power 5.6KW/5600W Solar Inverter  MPPT Pure Sine Wave 500VDC 60A Solar Charge Controller 24V 220V 50Hz/60Hz Off Grid Inverter With Wifi Module


  1. Adopt full digital voltage and current double closed-loop control and advanced SPWM technology to output pure sine wave.
  2. Two output modes, i.e. mains bypass and inverter output can achieveuninterrupted power supply function.
  3. Four optional charge modes: only solar energy, mains priority, solar energypriority and mixed charge.
  4. Advanced MPPT technology, with efficiency up to 99.9%.
  5. Wide MPPT voltage range.
  6. With function of activating lithium battery with solar energy and AC mainspower, it supports connection of lead-acid battery and lithium battery.
  7. LCD screen design and 3 LED indicator lights dynamically display systemdata and operation states.
  8. ON/OFF rocker switch can control AC output.
  9. With power saving mode function, it can reduce no-load loss.
  10. Intelligent adjustable speed fan is adopted for efficient heat dissipation andextended system life.
  11. Possessing multiple protection functions and 360°comprehensive
  12. Possessing complete short circuit protection, overvoltage and undervoltageprotection, overload protection, back filling protection, etc.
  13. It has the function of mixed load: when the battery is not connected,photovoltaic and commercial power can supply power to the load at the same time (if there is no battery, the commercial power must be connected). When the battery is full, it can also enter the mixed load mode, which can make full use of the photovoltaic energy.
  14. WIFI included

Models

ISolar-SMX-II-3.6KW

ISolar-SMX-II-5.6KP

AC mode

Rated input voltage

220/230Vac

Input voltage range

(170Vac~280Vac) ±2%;(90Vac-280Vac)±2%

Frequency

50Hz/ 60Hz (Auto detection)

Frequency Range

47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protection

Circuit breaker

Efficiency

>95%

Conversion time (bypass and inverter)

10ms (typical)

AC reverse protection

Available

Maximum bypass overload current

30A

40A

Inverter mode

Output voltage waveform

Pure sine wave

Rated output power (VA)

3600

5600

Rated output power (W)

3600

5600

Power factor

1

1

Rated output voltage (Vac)

230Vac

230Vac(200/208/220/240Vac settable)

Output voltage error

±5%



Output frequency range (Hz)

50Hz ± 0.3Hz/60Hz ± 0.3Hz

50Hz ± 0.3Hz/60Hz ± 0.3Hz

Efficiency

>92%

>90%

Peak power

6000VA

10000VA

Loaded motor capability

2HP

4HP

Output short circuit protection

Circuit breaker

Circuit breaker

Bypass breaker specifications

30A

40A

Rated battery input voltage

24V (Minimum starting voltage 22V)

48V (minimum start voltage 44V)



Battery voltage range

20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage overvoltage alarm /overvoltage recovery... settable on LCD screen)

Power saving mode

Load ≤50W

AC charging

Battery type

Lead acid or lithium battery

Maximum charge current

80A

60A

Charge voltage range

20.0Vdc~33Vdc

40~60Vdc

Short circuit protection

Circuit breaker and blown fuse

Breaker and blown fuse

Circuit breaker specifications

30A

40A

Overcharge protection

Alarm and turn off charging after 1 minute

PV charging

Maximum PV open circuit voltage

500Vdc

500Vdc

PV operating voltage range

120-500Vdc

120-500Vdc

MPPT voltage range

120-450Vdc

120-450Vdc

Battery voltage range

20-33Vdc

40-60Vdc

Maximum intput power

4000W

6000W

PV charging current range (can be set)

0-80A

0-80A

Charging short circuit protection

Blown fuse

Blown fuse

Wiring protection

Reverse polarity protection

Inverse wiring protection

Certified specifications

Certification

CE(IEC 62109-1)

EMC certification level

EN61000, C2

Operating temperature range

-15°C to 55°C

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95% (Conformal coating protection)

Noise

≤60dB

Heat dissipation

Forced air cooling, variable speed of fan

Communication interface

USB/CAN/RS485(WiFi/GPRS)/Dry node control

Size (L*W*D)

378mm*280mm*103mm

426mm*322mm*126mm

Weight (kg)

6.9

10.9

inverter mppt charge controller

off grid power inverter

solar power inverter

The user manual download address is as follows:

ISolar-SMX-II-5.6KP Manual manual
