Easun Power 11KW Solar Inverter 150A MPPT Solar Charge Controller Built -in WiFi

Save $170.00 Save $170.00
Original price $1,250.00
Original price $1,250.00 - Original price $1,250.00
Original price $1,250.00
Current price $1,080.00
$1,080.00 - $1,080.00
Current price $1,080.00

Key Feature

Free shipping

Free returns

NO VAT

Secure payments

Ship From: EU
Request a quote

Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

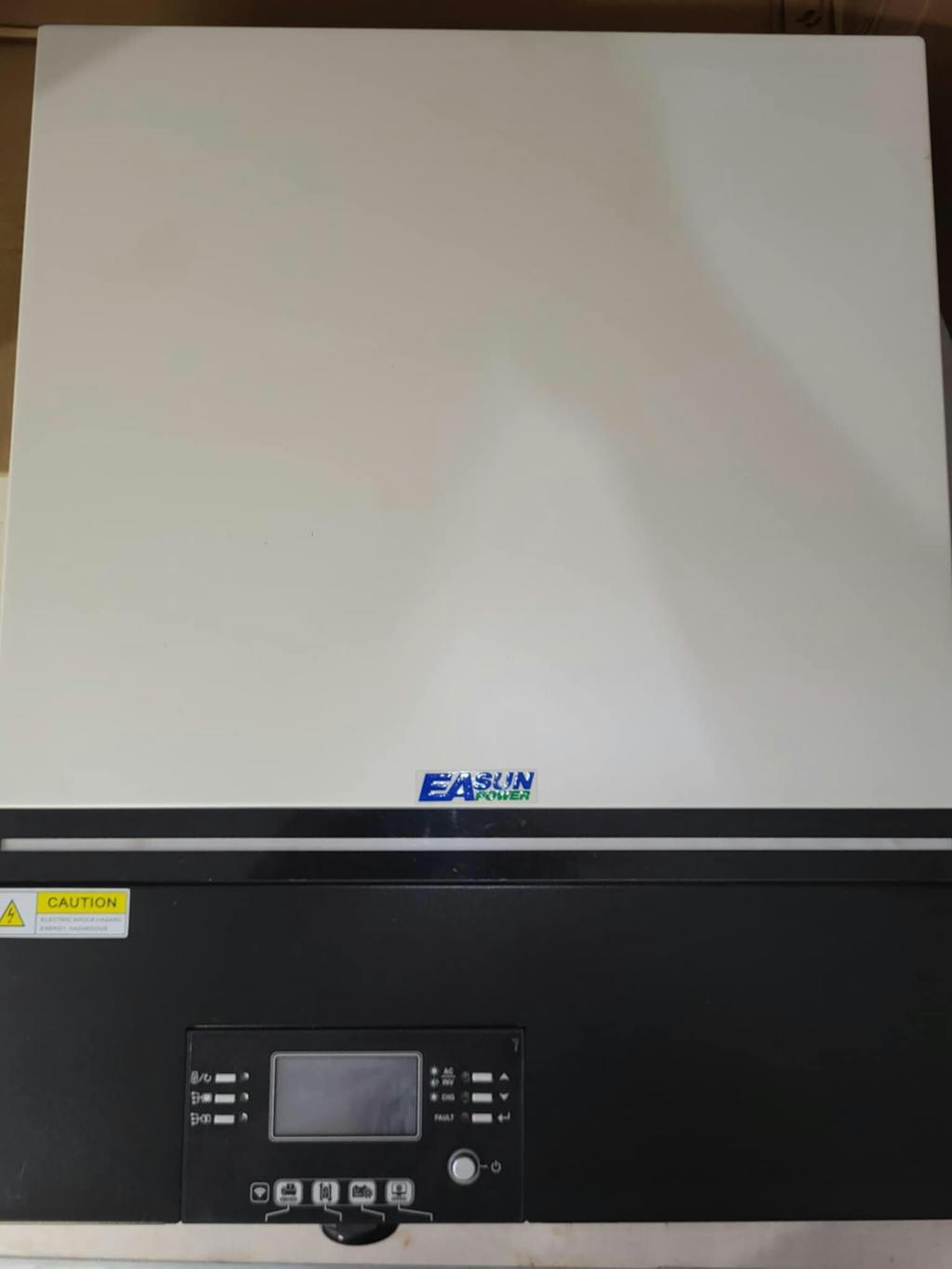

EASUN POWER Bluetooth 11000W 500VDC PV Input 48V 230Vac PV Array  150A MPPT solar charger inverter

Festures:
Can work without battery
Configurable color with the built-in RGB LED bar
Built-in Wi-Fi for mobile monitoring (APP is required)
Supports USB On-the-Go function
Optional 12V DC output
Built-in anti-dusk kit
Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
Configurable input voltage ranges for home appliances and personal computers via LCD control panel
Configurable AC/PV output usage timer and prioritization
Configurable AC/Solar charger priority via LCD control panel
Configurable battery charging current based on applications via LCD control panel
Compatible to utility mains or generator power
Auto restart while AC is recovering
Overload / Over temperature / short circuit protection
Smart battery charger design for optimized battery performance
Cold start function


MODEL

ISolar SMW 11K

The rated power

11KVA/11KW

Parallel Capability

Yes, up to 6 units

INPUT

Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);90-280VAC(For Home Appliances)

Frequency

50/60 Hz (Auto sensing)

OUTPUT

Nominal Voltage

230VAC±5%

Surge Power

22000VA

Efficiency (Peak)

 93%

Waveform

Pure Sinewave

Transfer Time

15ms(For personal Computer);20ms(For Home Appliances)

No Load Power Consumption

< 70W

Dual Outputs

yes

BATTERY

Battery Voltage

48VDC

Floating Charge Voltage

54VDC

OverCharge Protection

66VDC

Solar Charger & AC Charger

Solar Charger TYPE

MPPT

Max.PV Array Power

11000W(5500Wx2)

Max. PV Array Open Circuit Voltage

500 VDC

MPPT Range @ Operating Voltage

90VDC~450VDC

Maxmum Solar Charge Current

150A

Maximum AC Charge Current

150A

Maximum Charge Current

150A

PHYSICAL

Dimensions, D x W x H(mm)

710x590x260

Gross Weight (Kgs)

23.550

Communication Interface

USB/RS232/RS485/Wifi/Dry-contact

OPERATING ENVIRONMENT

Operating Temperature

-10°C to 50°C

Storage temperature

-15°C~ 60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

SMW 11K
