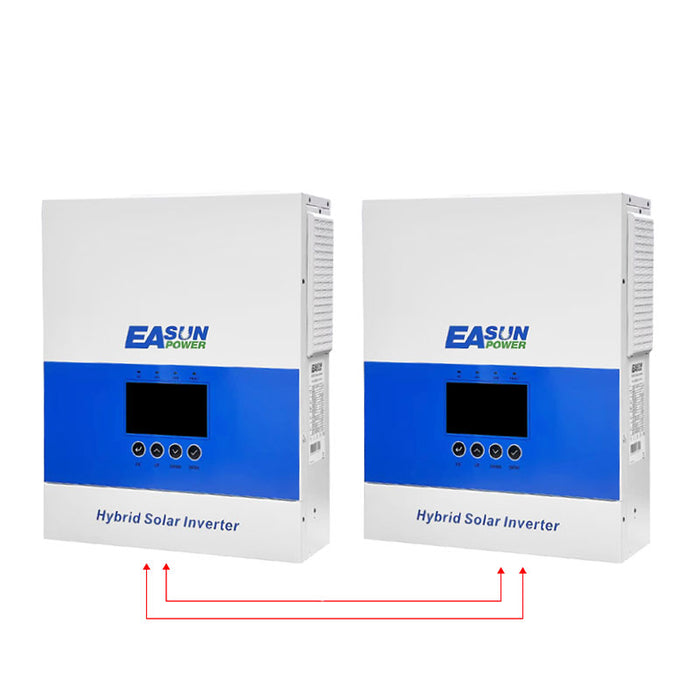

Easun Power 6.2KP Off Grid Inverter 120A MPPT Solar Charge Controller With Wifi

Easun Power 6.2KP Off Grid Inverter 120A MPPT Solar Charge Controller With Wifi

Save $118.00 Save $118.00
$668.00
$668.00 - $668.00
$668.00
$550.00
$550.00 - $550.00
$550.00

Key Feature

-Pure sine wave
-Powerfactor1.0
-PVinput 500Vdc Max
-Built-in MPPT 120A
-Capable to work without battery
-Parallel operation up to12 units in 1 phase or 3 phase

Free shipping

Free returns

NO VAT

Secure payments

Ship From: EU
Request a quote

Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

Have stock in EU now, we can shipping quickly and no need pay tax in European.
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Support connect lithium battery, communication with BMS port is RS232.

MODEL

ISolar SMG II 6.2KP 48V WiFi

Capacity

6.2KVA/6.2KW

Parallel Capability

YES,12 Units

INPUT



Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280vac(For Home Appliances)

Frequency

50/60 Hz(Auto sensing)

OUTPUT



Nominal Voltage

220/230VAC+5%

Surge Power

12400VA

Frequency

50/60Hz

Waveform

Pure Sine wave

Peak Eficiency(PV to INV)

96%

Peak Efficiency(Battery to INV)

93%

Crest Factor

3:1

BATTERY



Battery Voltage

48VDC

Floatig Charge Volage

54VDC

OverCharge Protectin

63VDC

Charging Method

CC/ CV

Solar Charger & AC Charger



Max.PV Array Power

6500W

Max.PV Array Open Circuit Voltage

500VDC

PV Array MPPT Voltage Range

60VDC~450VDC

Max.Solar Input Current

27A

Max.Solar Charge Current

120A

Max.AC Charge Current

80A

Max.Charge Current

120A

PHYSICAL



Dimensions,D x W x H(mm)

450*300*130

Package Dimensions,D x W x H(mm)

540x390x210

Net Weight(Kg)

12

Communication Interface

RS232 / RS485 / Dry-contact

ENVIRONMENT



Operating Temperature Range

(-10°C to 50°C)

Storage Temperature

(-15°C ~ 50°C)

Humidity

5% to 95% Relative Humidity ( Non-condensing )

easun power 8000w


Note: The inverter includes WiFi, which can be connected to mobile phone APP monitoring



Features:

*pure sine wave soalr inverter

*Output power factor 1

*High PV input voltage range

*Built-in MPPT soalr controller

*Battery equalization function to optimize

 Battery performance and extend lifecycle

*Inverter running without barrery

*Built-in anti-dusk kit for harsh environment

*WIFI-GPRS remote monitoring (WIFI Plug included)

*Detachable LCD(Optional)

* Built-in Parallel Kit
