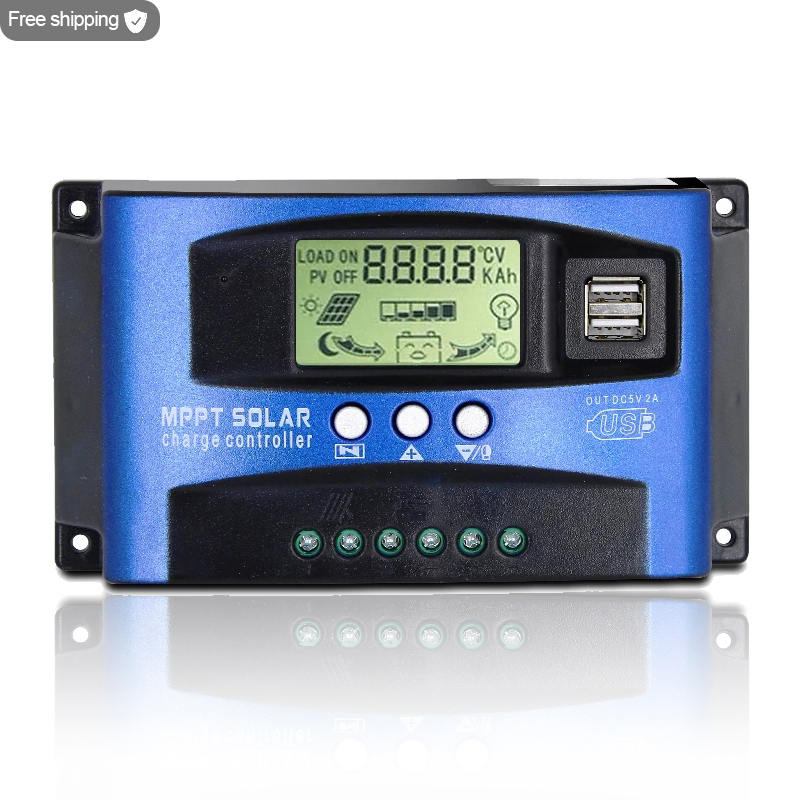

Easun Power MPPT 100A 60A 50A 40A 30A Solar Charge Controller Dual USB LCD Display 12V 24V Solar Cell Panel Charger Controller with Load

Original price $21.65 - Original price $29.48
Original price
$21.65
$21.65 - $29.48
Current price $21.65

Free shipping

Free returns

NO VAT

Secure payments

Current: 30A
Ship from: Australia
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

Function:

1. always keep the battery on filling voltage state.
2. prevent the battery from overcharging.
3. prevent the battery from over-discharged.
4. prevent the battery from reverse charging to solar panels during
Nights.
5. Reverse polarity protection for battery
6. Reverse polarity protection for solar panels
7. if the battery voltage is low, the controller will
Automatically truncated the load from the system. If the voltage of
Battery is back to normal and the load will restart, working.
8. thunder protection
9. after the battery voltage grade, the controllers can
Automatic set charge-off voltage, the last-off voltage that
Load restoration voltage. (The parameter is standard below 25 °C
State, locked by the CPU move, do not set.)
10. the controller will automatically compensate for the temperature of
The charging voltage according to the changes in the ambient temperature.

Properties:

1. industry-grade master-chip, 16 AD sampling accuracy, temperature, charging current,
Discharge current accurate real-time display, power generation at a glance.
2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection
During the charging process, bidirectional with focus on tracking.
3. Large screen LCD display, adjustable charging and discharging parameters. UItra-wide charge
And discharge adjustable, as long as you understand the characteristics of the battery set its
Appropriate charging parameters, it can charge a battery. If the output is off, the time
Can be adjusted, which is more convenient. (on the market, it is not a point setting)
4. Acomplete three-phase charge management, effectively protect the battery, the battery is more
Long-lived.
5. Built-in overheating, overcurrent short circuit, no-load protection, reverse polarity
Protection when the bug is eliminated, the controller wins automatically, do not harm
The device.
6. Bidirectional MoS tube anti-reflux circuit, high-power charging mode, ultra-low heat.
7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Note: It is high qualityCompatible MPPT+ PWM Solar Controller, not 100% Ture MPPT

Specifications
1. Rated voltage: 12/24V
2. Rated current: 30/50/60/100A
3. Max PV input power: 750W(12V) / 1200W(24V)
4.System voltage: 12/24V adaptive5
. rated charging current: 30A | 50A | 60A | 100A6
. rated discharge current: 10A | 20A  | 30A | 30A
7.Solar photovoltaic voltage:12V battery with 18V solar panel, 24V battery with 36V solar panel
8. full voltage value: lithium battery (12.2V) | B02 Colloidal battery (14.2 V) | B03 Open Cells (14.6V)
9.Floating Charge Voltage: 13.7V (Standard, Adjustable)
10th Discharge Cut-off Voltage:: 10.7V(Standard, Adjustable)
11th Discharge Recovery Voltage: 12.6V(Standard, Adjustable)
12.Standby Current: 10mA13.USB
Output: 5V/2A MAX14.Operating
Temperature:- 35 - 60
Package Includes:
1 x Solar Panels Battery Charge Controller
1 x User Manual
