EASUN POWER 12.8V 200AH LiFePO4 Battery 2000+ Deep Cycles for RVs Pack Grand A Cells Lithium Iron for Solar Energy System from US

Save $175.00 Save $175.00
Original price $860.00
Original price $860.00 - Original price $860.00
Original price $860.00
Current price $685.00
$685.00 - $685.00
Current price $685.00

Free shipping

Free returns

NO VAT

Secure payments

Color: US
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

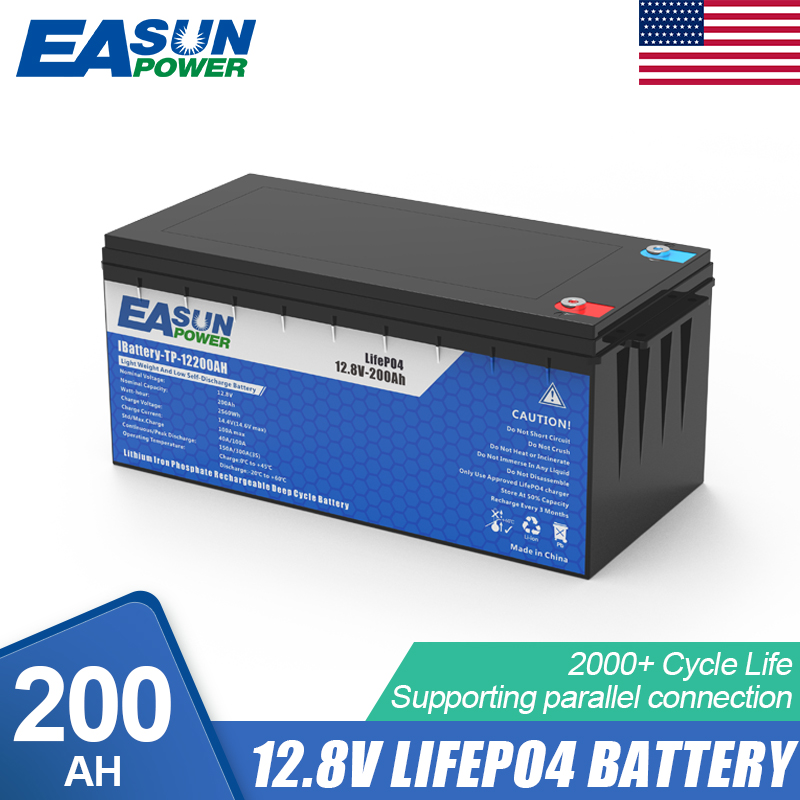

12.8V 200AH LiFePO4 Battery Pack Grand A Cells Lithium Iron for Solar Energy System





Model

IBattery-TP-12200AH

IBattery-TP-24200AH

Nominal capacity

200Ah

Mix. Capacity

195Ah

Nominal energy

2560Wh

5120Wh

Combination structure of battery

54173210-4S1P

54173210-8S1P

Nominal voltage

12.8V

25.6V

End of discharge voltage

10.8V

21.6V

Standard charge voltage

14.6±0.2V

29.2±0.2V

Float charge voltage

13.8V

27.6V

Standard charge current

40A

40A

Recommended charge current

≤100A

≤50A

Allowed Max. charge current

100A

100A

Standard charge current

40A

100A

Recommended charge current

≤100A

≤150A

Allowed Max. charge current

150A

150A

Peak current

300A,10Sec

300A,10Sec

Internal Resistance

≤30mΩ

≤60mΩ

Weight

Approx. 21.0kg±5%

Approx. 41.0kg±5%

Ex-factory capacity

Approx.50% SOC

Approx.50% SOC

Operation temperature

Discharge

-20℃~60℃

Charge

0℃~45℃



Storage environment

≤1Month

-20~+60℃、5~75%RH

≤6Month

-10~+45℃、5~75%RH

Recommend environment

15~+35℃、5~75%RH

Net size

522*240*218mm

522*240*218mm

Packing size

540*270*270mm

540*270*270mm

G.W.

22.5kg

22.5kg

N.W.

24kg

24kg
