EASUN POWER 3Kva 2400W Solar Inverter 220V 40A MPPT 3Kva Pure Sine Wave Inverter 50Hz 60HZ Off Grid Inverter 24V Battery Charger
3Kva 2400W MPPT Solar Inverter
$332.99
$389.00
- 14%
EASUN POWER 3Kva 2400W Solar Inverter 220V 40A MPPT 3Kva Pure Sine Wave Inverter 50Hz 60HZ Off Grid Inverter 24V Battery Charger
3Kva 2400W MPPT Solar Inverter
Ship From
Quantity
ADD TO CART
BUY NOW
Description

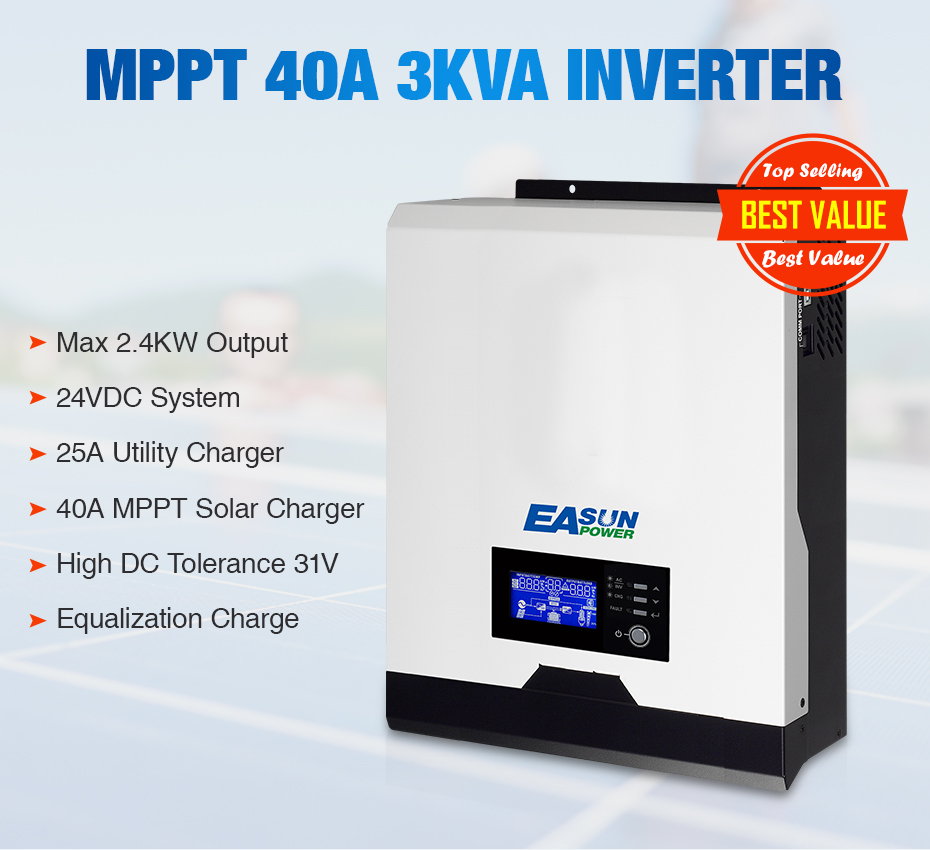

ISolar SMV 3KW is  a new 3KVA 2400w 24Vdc Off Grid Solar Power Inverter MPPT Solar Inverter with  40A MPPT Solar Charger and 25A AC Charger

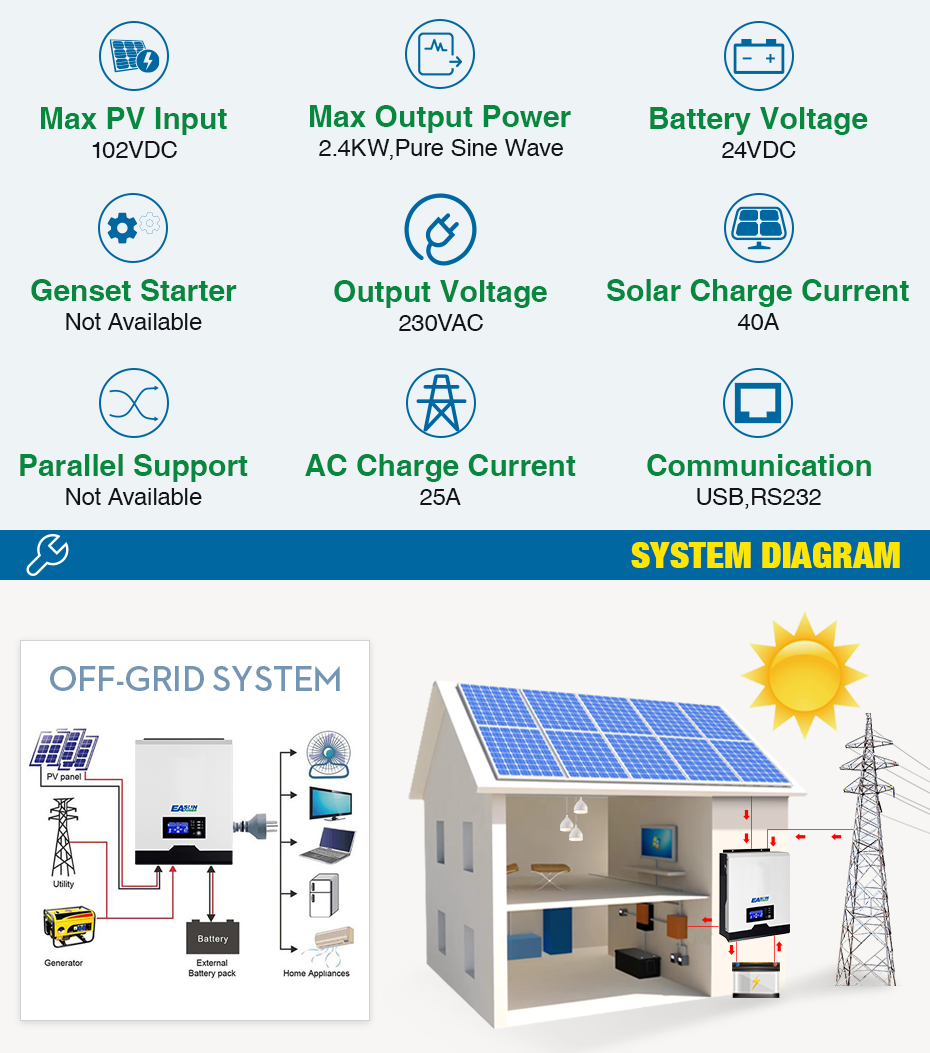

Product Main Features:
3KVA 2400W 24V Pure Sine Wave Inverer +40A-MPPT Solar Charger + 25A Battery Charger
Max Battery DC Volt 31V
Built-in EQUALIZATION Charge Max 31.5V
Fuse Protection (Against DC Reverse Polarity)
MPPT-40A Solar + UTILITY 25A Charge
Works With 220~240Vac Load Only
Works With 24v battery system only
Dual priority operation selectable: AC vs. DC mode
Support frequency 50hz or 60hz
Adjustable AC input voltage 90~280VAC
Supports 50hz or 60hz via LCD program
USB comm port

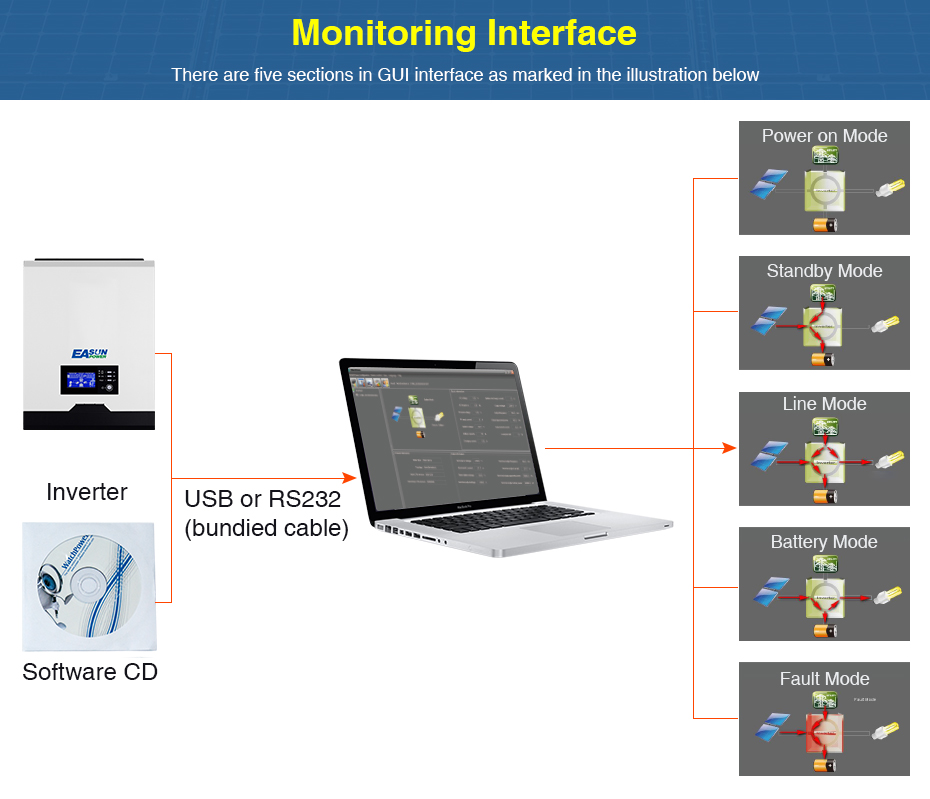

Free monitoring software

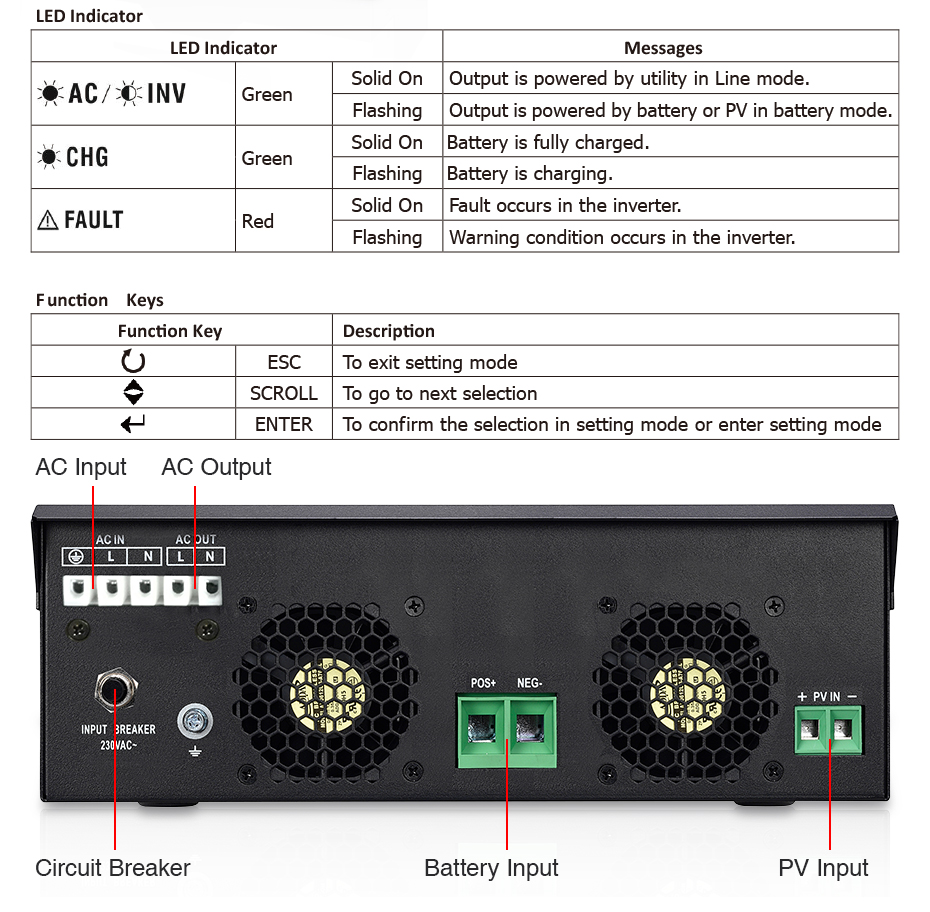

Programmable LCD with menu
Built-in alarms and protections
Intelligent battery charging control
CE, EMC certified

MODEL
ISolar SPV 3K

ISolar SMV 3K
Rated Power
3000VA / 2400W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
6000VA
Efficiency (Peak)
90% ~ 93%
Transfer Time
10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform
Pure sine wave

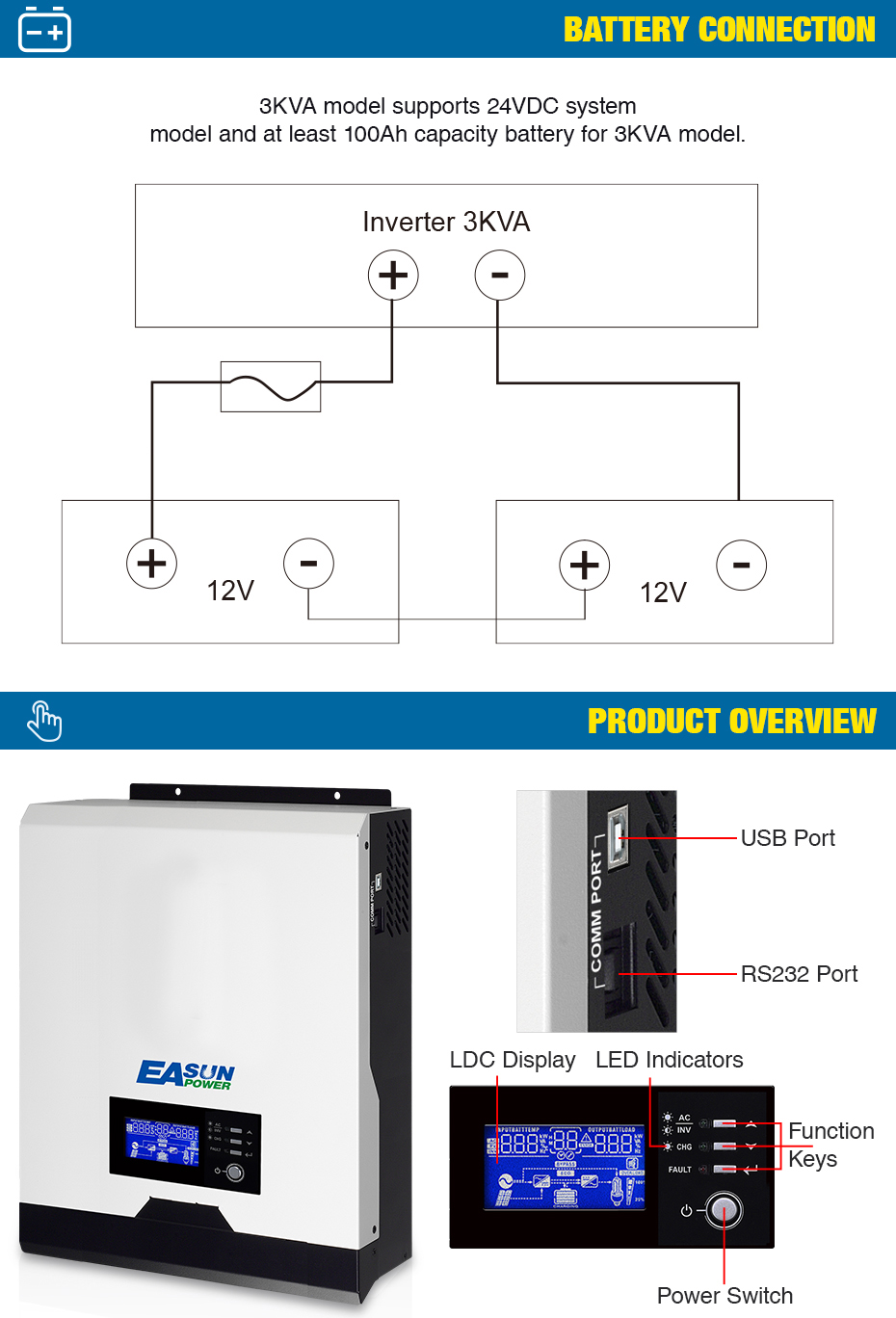

BATTERY
Battery Voltage
24 VDC
Floating Charge Voltage
27 VDC
Overcharge Protection
31 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type
PWM

MPPT

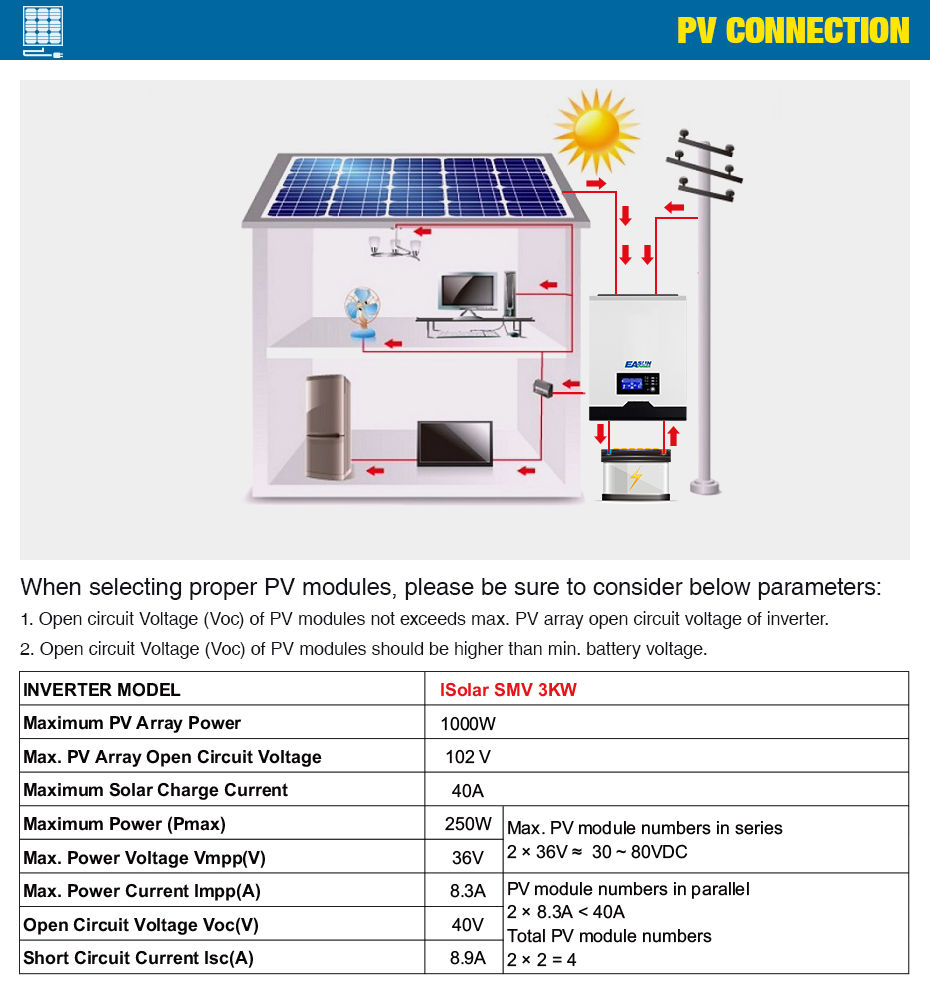

Maximum PV Array Open Circuit
Voltage
80 VDC

102 VDC
Maximum PV Array Power
1200 W

1000 W
MPP Range @ Operating Voltage
N/A

30~80 VDC
Maxmum Solar Charge Current
50 A

40 A
Maximum AC Charge Current
25 A

25 A
Maximum Charge Current
70 A

60 A
PHYSICAL
Dimension, D x W x H (mm)
88 x 257.6 x 320
Net Weight (kgs)
5.4

5.7
Communication Interface
USB/RS232
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
-10°C - 50°C
Storage Temperature
-15°C - 60°C
