Easun Power 12.8V 200AH LiFePO4 Battery Pack Grand

Esaurito
Prezzo originale $610.00
Prezzo originale $610.00 - Prezzo originale $610.00
Prezzo originale $610.00
Prezzo attuale $489.99
$489.99 - $489.99
Prezzo attuale $489.99

Key Feature

The lifepo4 12.8v 200ah is built-in bms board, protects the battery well. (However, please note that there is a difference in the BMS communication between lithium iron phosphate batteries and wall-mounted lithium batteries.)

Support all of EASUN POWER SOLAR INVERTER, but also need to consider the voltage of the inverter support connected to the battery

Free shipping

Free returns

NO VAT

Secure payments

Pre-Sales: Free Shipping from EU
Request a quote
Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

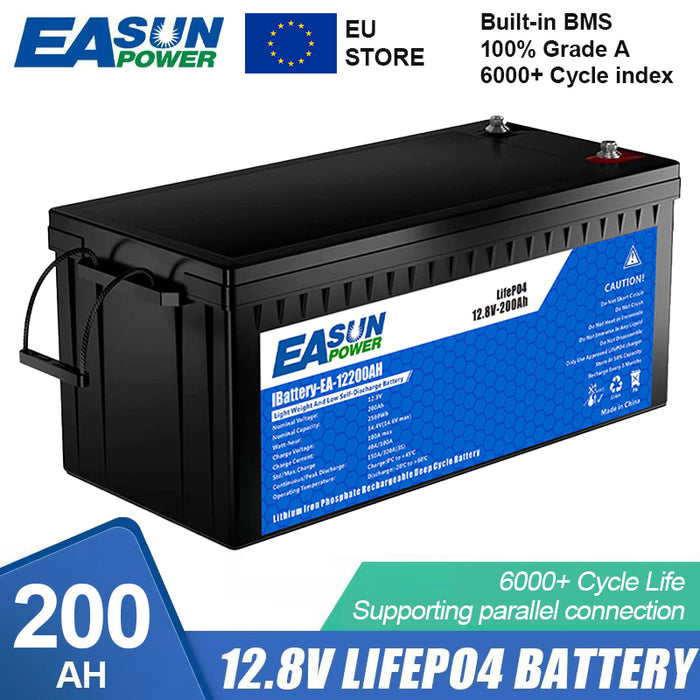

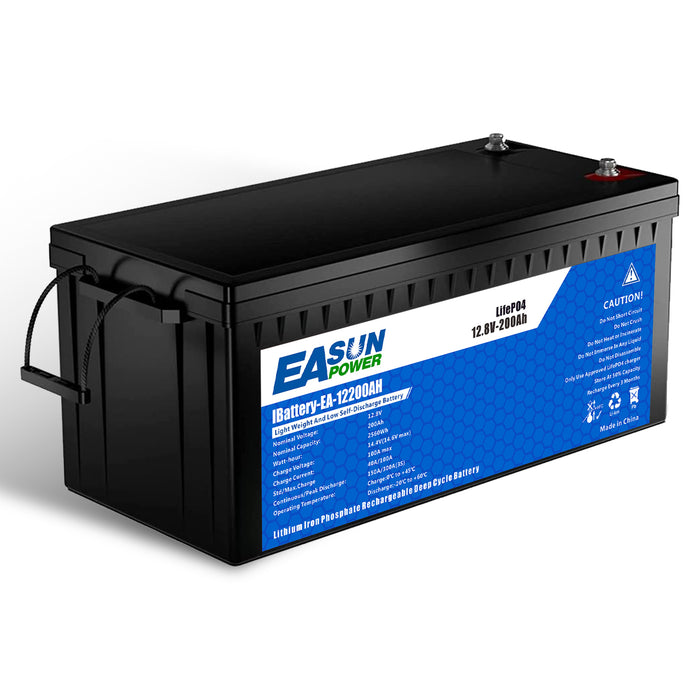

12.8V 200AH LiFePO4 Battery Pack Grand A Cells Lithium Iron for Solar Energy System

Please remarked:

  • The lifepo4 12.8v 200ah is built-in bms board, protects the battery well. (However, please note that there is a difference in the BMS communication between lithium iron phosphate batteries and wall-mounted lithium batteries.)
  • Support all of EASUN POWER SOLAR INVERTER, but also need to consider the voltage of the inverter support connected to the battery

EASUN POWER has always been committed to giving customers better products (solar inverter, built-in bms board 12v 200ah lithium, solar controller, solar system etc) and buying experience than shipping from China, both in terms of time and price.

  • Free shipping from EU
  • No need pay tax in EU local
  • Quickly delivery

Model

IBattery-TP-12200AH

IBattery-TP-24200AH

Nominal capacity

200Ah

Mix. Capacity

195Ah

Nominal energy

2560Wh

5120Wh

Combination structure of battery

54173210-4S1P

54173210-8S1P

Nominal voltage

12.8V

25.6V

End of discharge voltage

10.8V

21.6V

Standard charge voltage

14.6±0.2V

29.2±0.2V

Float charge voltage

13.8V

27.6V

Standard charge current

40A

40A

Recommended charge current

≤100A

≤50A

Allowed Max. charge current

100A

100A

Standard charge current

40A

100A

Recommended charge current

≤100A

≤150A

Allowed Max. charge current

150A

150A

Peak current

300A,10Sec

300A,10Sec

Internal Resistance

≤30mΩ

≤60mΩ

Weight

Approx. 21.0kg±5%

Approx. 41.0kg±5%

Ex-factory capacity

Approx.50% SOC

Approx.50% SOC

Operation temperature

Discharge

-20℃~60℃

Charge

0℃~45℃



Storage environment

≤1Month

-20~+60℃、5~75%RH

≤6Month

-10~+45℃、5~75%RH

Recommend environment

15~+35℃、5~75%RH

Net size

522*240*218mm

522*240*218mm

Packing size

540*270*270mm

540*270*270mm

G.W.

22.5kg

22.5kg

N.W.

24kg

24kg
