Design with ac input /output 380vac 3 Phase only.

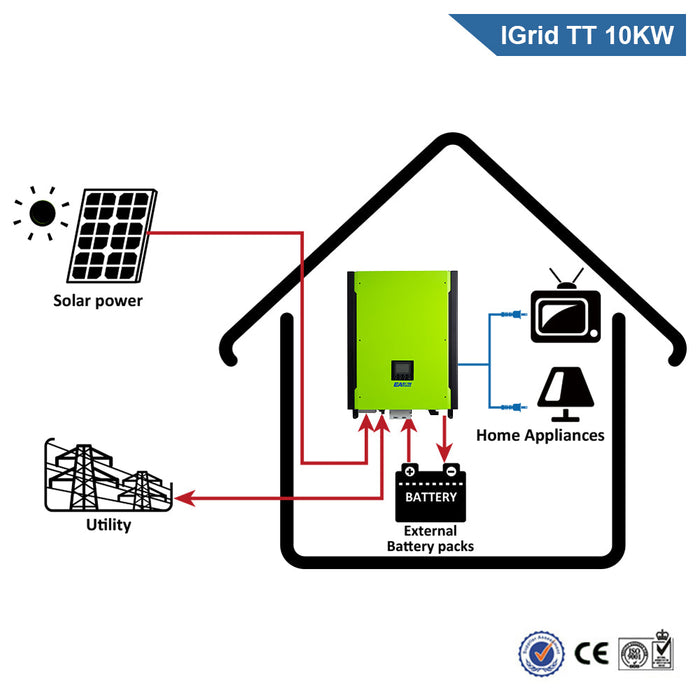

IGrid TT 10KW is a 3 Phase 10000w 48Vdc On & Off Grid Solar Power Inverter With Max MPPT 14850W Solar Inverter Pure Sine Wave Inverter ,it can feedback to Grid and make energy storage in to Battery bank. This 10KW hybrid Solar Inverter have 3 Operation Modes: Grid-tied, Off-Grid, On & Off Grid.
|
Matchless Power and Versatility

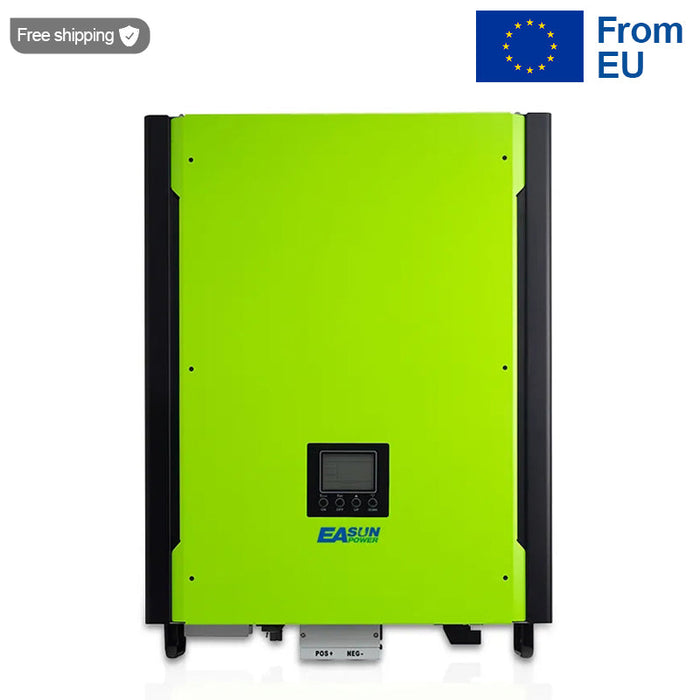

The EASUN POWER 3 Phase 10KW hybrid solar inverter is the most powerful and versatile inverter available for residential or commercial solar installation. It provides 10,000W of pure sine wave power and changes over from on-grid to off-grid mode seamlessly to provide continuous energy supply.
Dynamic Load Management
Dynamic load management capabilities optimize your energy consumption by allowing the inverter to prioritize power distribution at critical loads whenever needed, even during peak demand periods. It achieves greater efficiency and stability in energy use, hence freed from the worry of experiencing power outages.
Intelligent Integration of Energy Storage
Maximize your energy storage potential by smart integration with battery systems. The inverter will work in coordination with your battery bank to ensure very smooth transfers of energy, hence extending life and performance. Store excess solar power gained during the day for use when needed, ensuring a steady and reliable energy supply around the clock.
Real-Time Monitoring and Control
Stay in command of your solar power system by their advanced real-time monitoring and control features. Through the sleek LCD interface of the inverter and its comprehensive software suite, planners can obtain instantaneous performance metrics, system status, and energy usage trends at the click of a few buttons to make informed decisions and optimize their system's efficiency.
Eco-Friendly and Cost-Effective
This green inverter ensures a reduced carbon footprint and saves on energy bills. Its design is done in such a way that it allows extremely high efficiency and low standby power consumption to ensure that no single watt generated by solar goes to waste. Enjoy massive savings on your electricity bill while giving your bit for a greener planet.
Reliable and Robust Design
The Easun Power Hybrid Solar Inverter 3-Phase 10KW is designed to stand up to even the most challenging conditions, built with solid construction for lasting assurance. Its strong build and sophisticated cooling system avoid overheating and extend the life span to give you a reliable energy solution for years ahead.
EASUN POWER 3-Phase 10KW Hybrid Solar Inverter-designed for high performance, smart energy management, and robust reliability. Free shipment, no VAT with secure payment facilities, it's never been easier to invest in sustainable energy.
|
MODEL
|
IGrid TT 10KW
|
|
Phase
|
3-phase in / 3-phase out
|
|

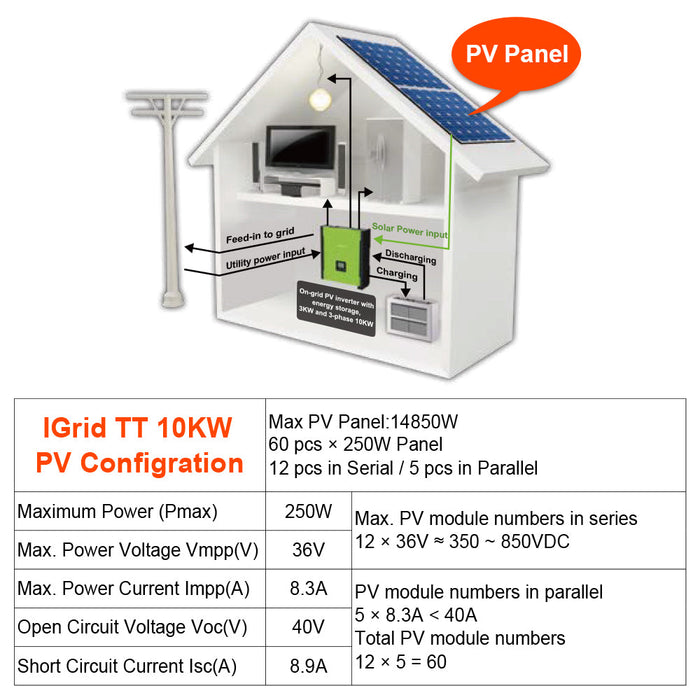

Maximum PV input power
|
14850 W
|
|
Rated output power
|
10000 W
|
|
Maximum charging power
|
9600 W
|
|
GRID-TIE OPERATION
|
|
PV INPUT(DC)
|
|
Nominal DC Voltage Maximum
|
720 VDC / 900 VDC
|
|
Start-up Voltage lnitial Feeding
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
400 VDC ~ 800 VDC
|
|
Number of MPP Trackers
|
2 / 2 x 18.6 A
|
|
GRID OUTPUT(AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184-265 VAC* per phase
|
|
Nominal Output Current
|
14.5 A per phase
|
|
Power Factor
|
|
|
EFFICIENCY
|
|
Maximum Conversion
|
96%
|
|
European Efficiency@Vnominal
|
95%
|
|
OFF-GRID OPERATION
|
|
AC INPUT
|
|
AC Start-up Voltage Auto
|
120 - 140 VAC per phase / 180
|
|
Acceptable lnput Voltage Range
|
170 - 280 VAC per phase
|
|
Maximum AC lnput Current
|
40 A
|
|
PV INPUT(DC)
|
|
Maximum CD Voltage
|
900 VDC
|
|
MPP Voltage Range
|
400 VDC ~ 800 VDC
|
|
Number of MPP Trackers
|
2 / 2 x 18.6 A
|
|
BATTERY MODE OUTPUT(AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Waveform
|
Pure Sine wave
|
|
Efffficiency (DC to AC)
|
91%
|
|
HYBRID OPERATION
|
|
PV INPUT (DC)
|
|
Nominal DC Voltage
|
720 VDC / 900 VDC
|
|
Start-up Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
400 VDC ~ 800 VDC
|
|
Number of MPP Trackers
|
2 / 2 x 18.6 A
|
|
GRID OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184-264.5 VAC* per phase
|
|
Nominal Output Current
|
14.5 A per phase
|
|
AC INPUT
|
|
AC Start-up Voltage Auto
|
120 - 140 VAC per phase / 180
|
|
Acceptable lnput Current
|
170 - 280 VAC per phase
|
|
Maximum AC lnput Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER
|
|
Nominal DC Voltage
|
48 VDC
|
|
Maximum Charging Current
|
Default 60A, 10A - 200A
|
|
GENERAL
|
|
PHYSICAL
|
|
Dimension,D X W X H (mm)
|
167.5 x 500 x 622
|
|
Net Weight (kgs)
|
45
|
|

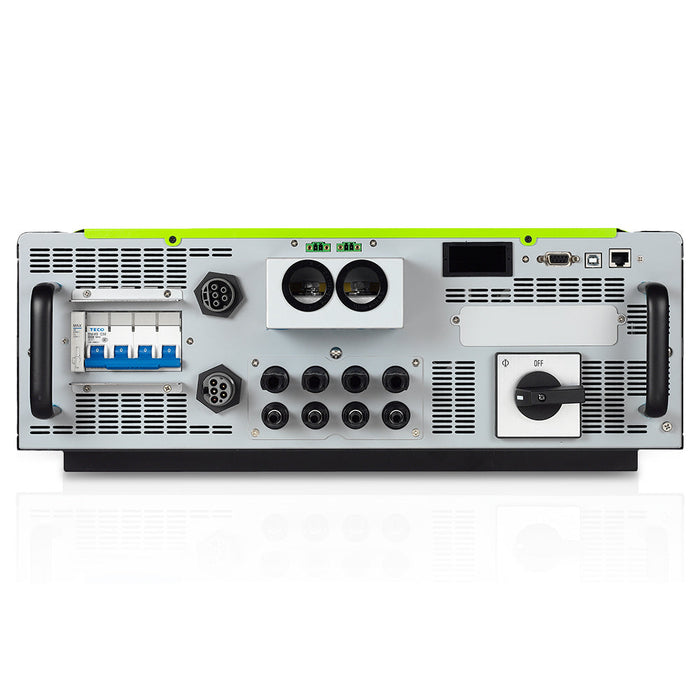

INTERFACE
|
|
Communicaltion Port
|
RS-232/USB and CAN Interface
|
|
lntelligent Slot
|
Optional SNMP, Modbus and AS-400 cards available
|
|
ENVIRONMENT
|
|
Humidity
|
0 ~ 90% RH (No condensing)
|
|
Operating Temperature
|
-10 to 55°C
|
|
Altitude
|
0 ~ 1000 m**
|
