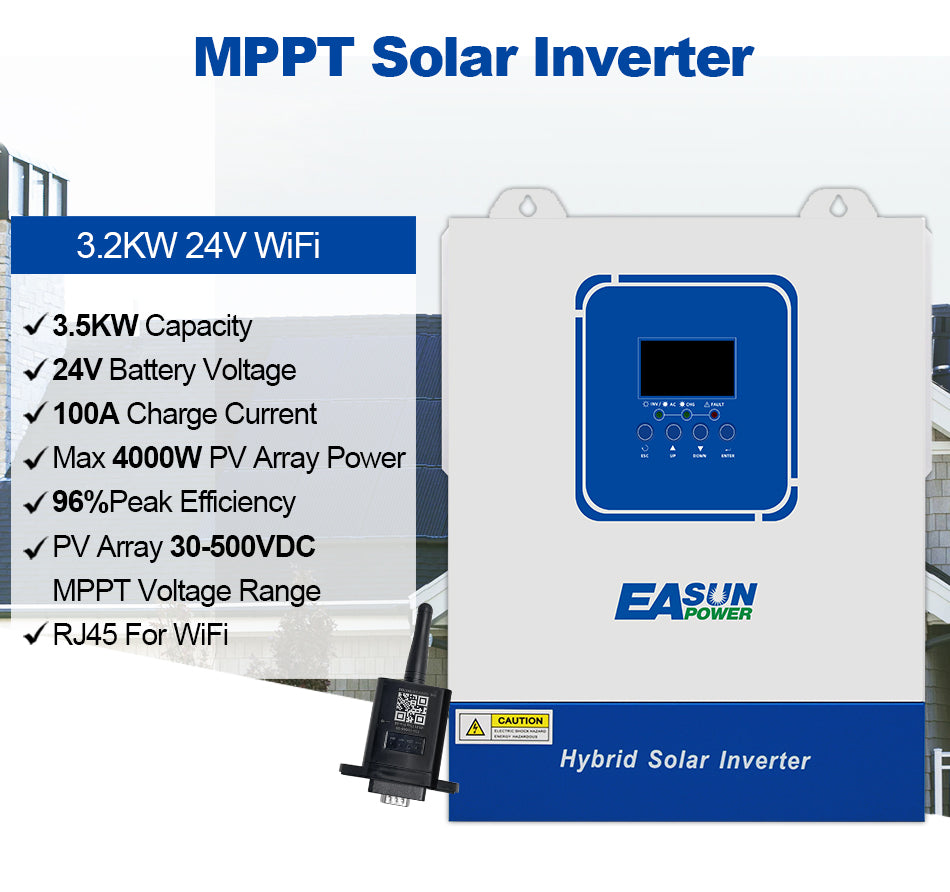

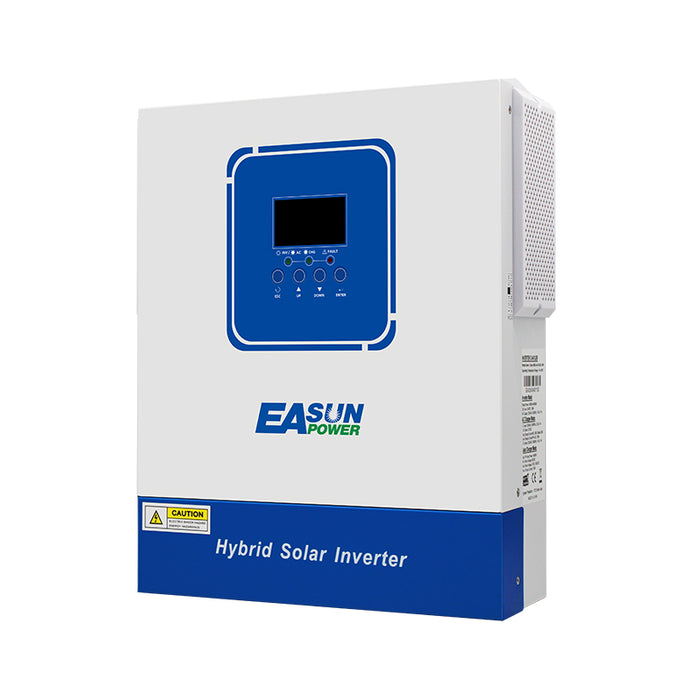

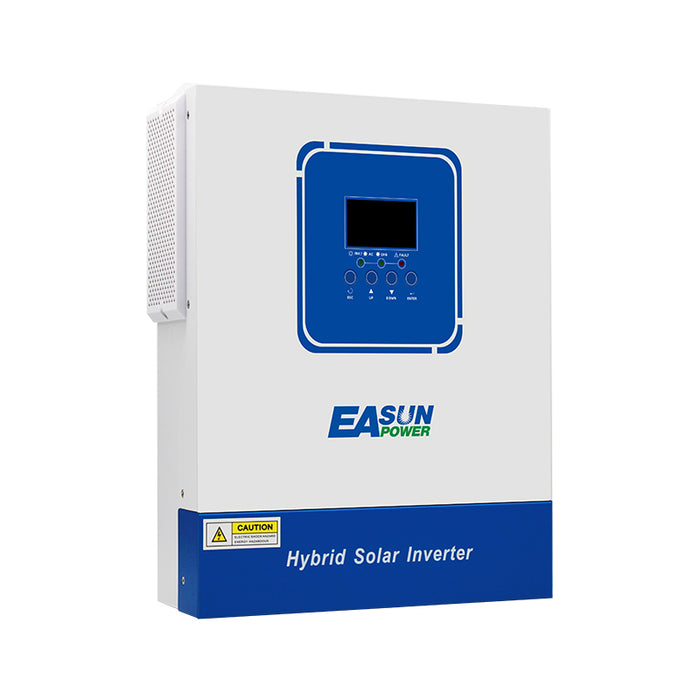

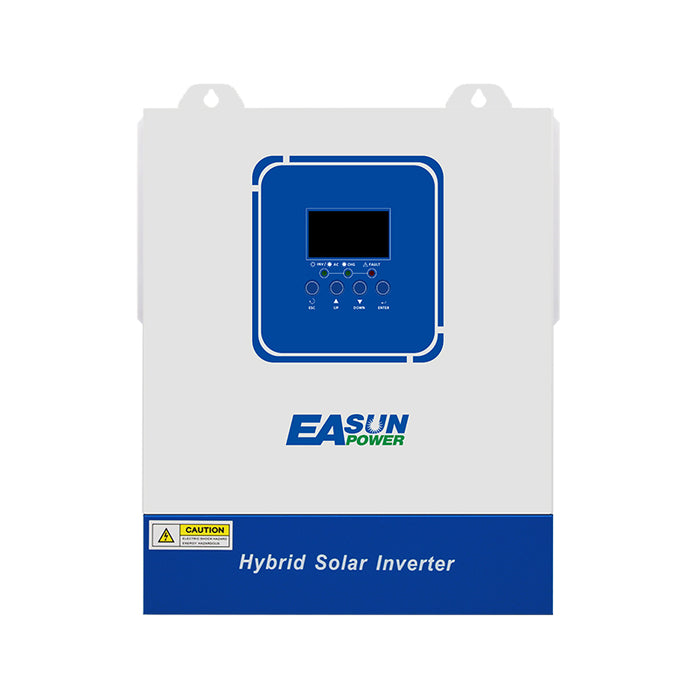

Easun Power 3.2KW OFF GRID HYBRID INVERTER 100A MPPT Solar Controller With WiFi

Ahorre $76.88 Ahorre $76.88
Precio original $295.88
Precio original $295.88 - Precio original $295.88
Precio original $295.88
Precio actual $219.00
$219.00 - $219.00
Precio actual $219.00

Key Feature

Free shipping

Free returns

NO VAT

Secure payments

Ship From: EU
Request a quote

Checkout Securely With
  • paypal
  • visa
  • master
  • maestro
  • jcb
  • american express
  • diners club
  • discover
  • unionpay

Authentic guarantee
12 months warranty
Fast return and exchange
Technical support

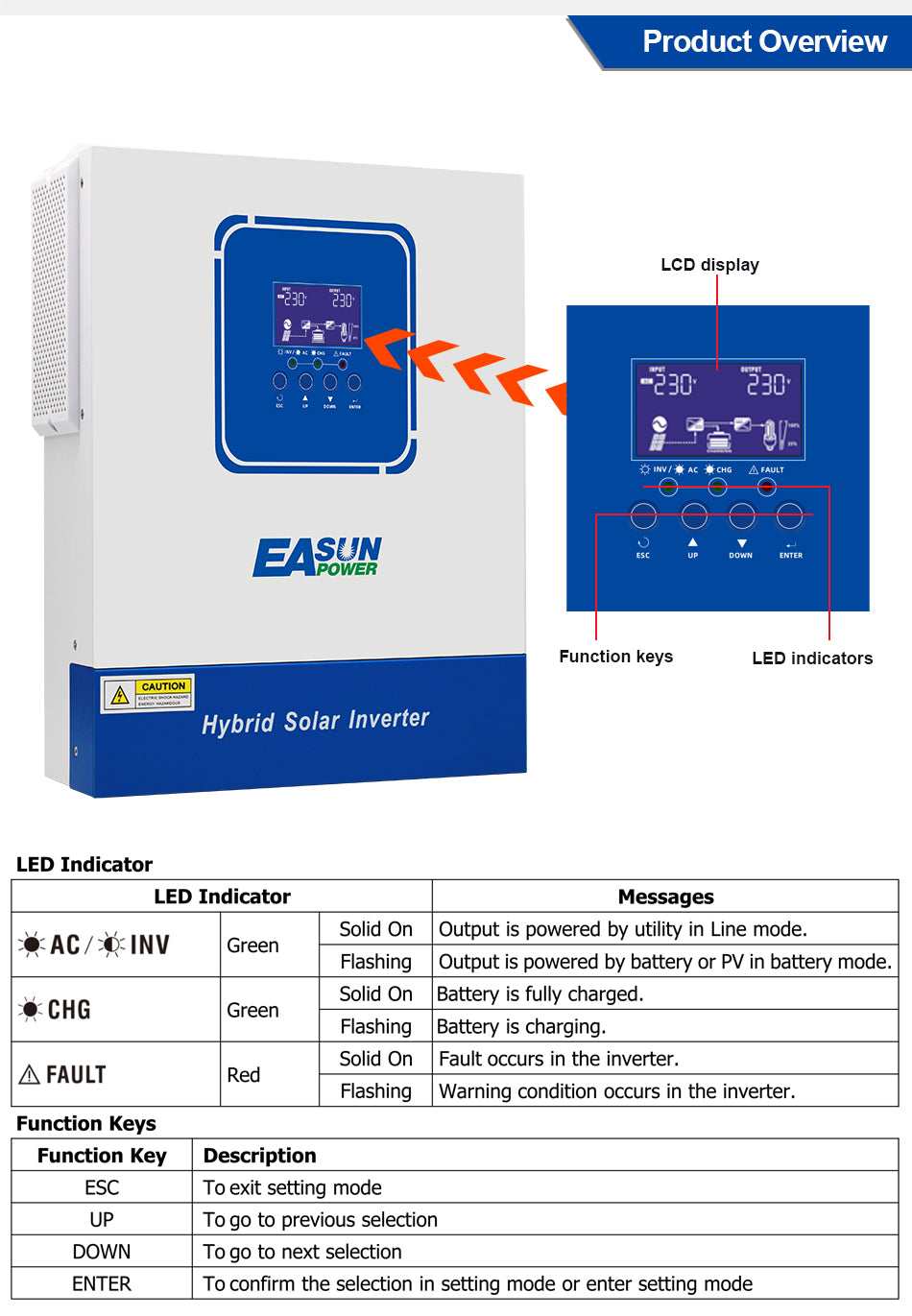

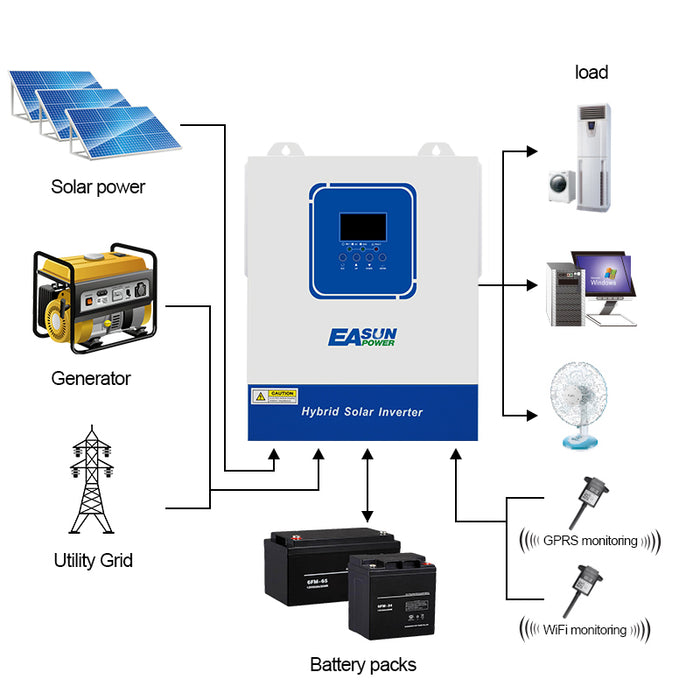

This is a multi-function inverter charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

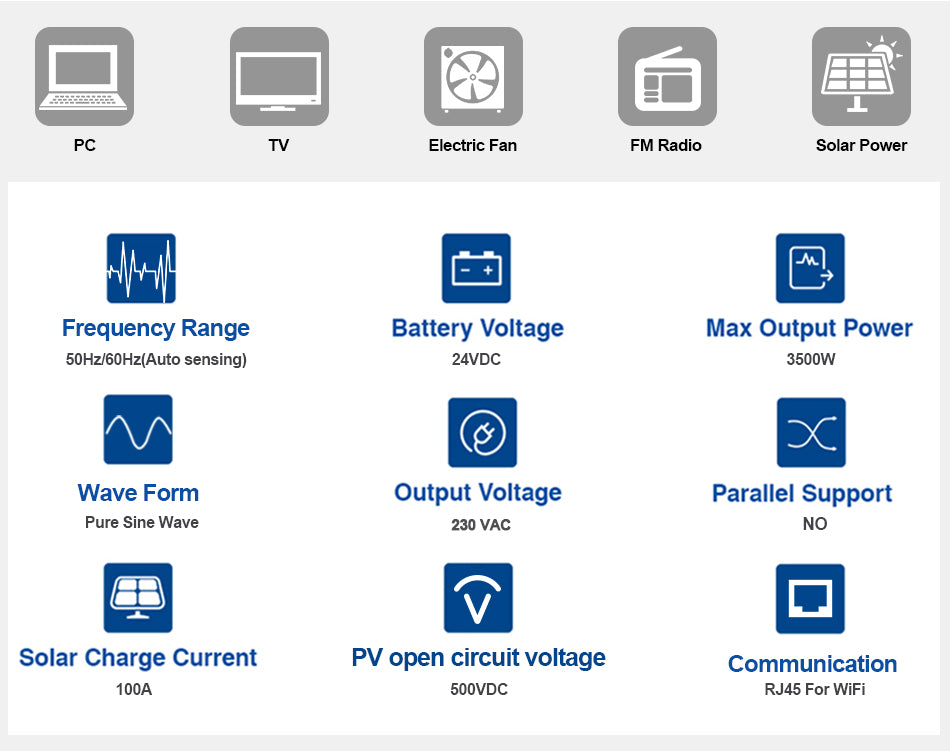

Product Features

  • Battery Wake-up Functio
  • Pure Sine Wave
  • PVInput 500Vdc Max
  • Built-in MPPT 60A-100A
  • Detachable dust cover for harsh environment
  • Wifi remote monitoring optional
  • Support multiple output priority:UTL,SOL,SBU,SUB
  • EQ function to optimize battery performance and extend lifecycle

MODEL

ISolar-SMG-II-3.2KW-24V-Wifi

Capacity

3200VA/3200W

Parallel Capability

NO

Lithium Battery activation

NO

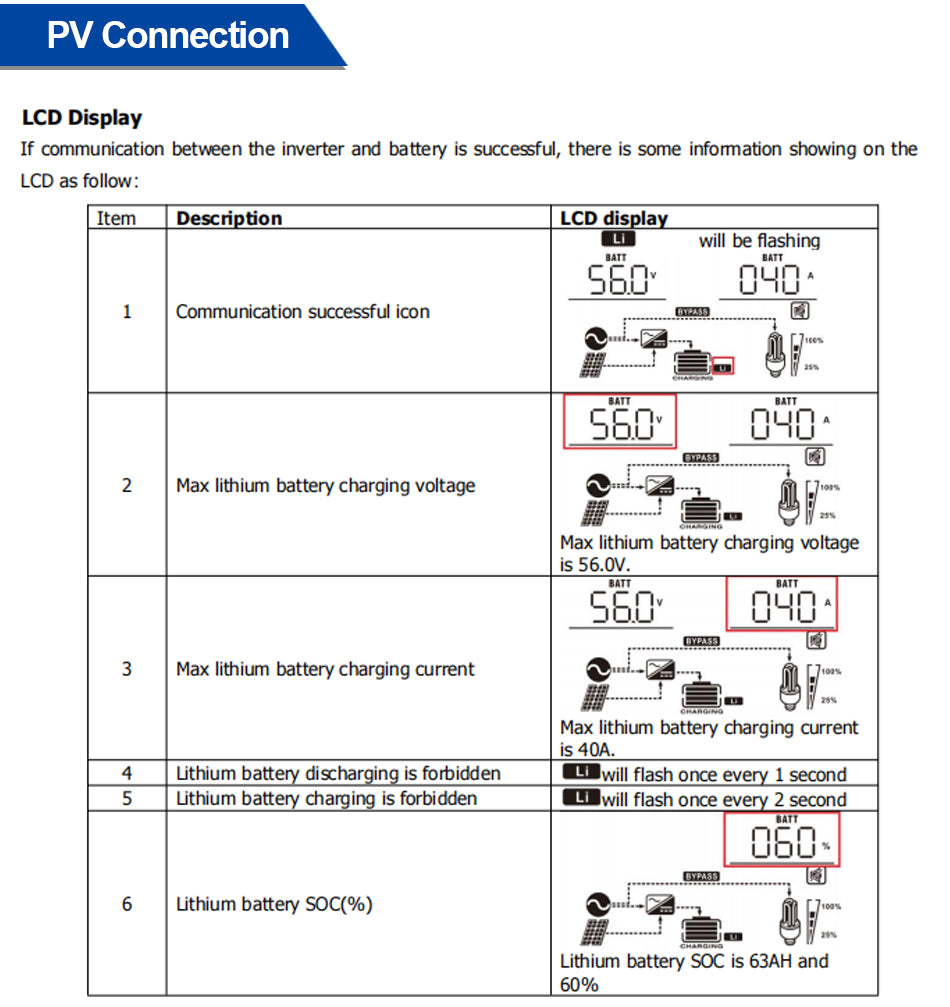

Lithium Battery communication

YES

INPUT

Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280vac(For Home Appliances)

Frequency

50/60 Hz(Auto sensing)

OUTPUT

Nominal Voltage

220/230VAC5%

Surge Power .

7000VA

Frequency

50/60Hz



Waveform

Pure Sine wave



Transfer Time

10ms(For personal Computer);20ms(For Home Appliances)



Peak Efficiency(PV to INV)

96%



Peak Efficiency(Battery to INV)

93%



Overload Protection

5s@ > = 140% load; 10s@100%~ 140% load



Crest Factor

3:1



Admissible Power Factor

0.6~1 (inductive or capacitive)



BATTERY



Battery Voltage

24VDC



Floating Charge Voltage

27VDC



OverCharge Protection

32VDC



Charging Method

CC/ CV

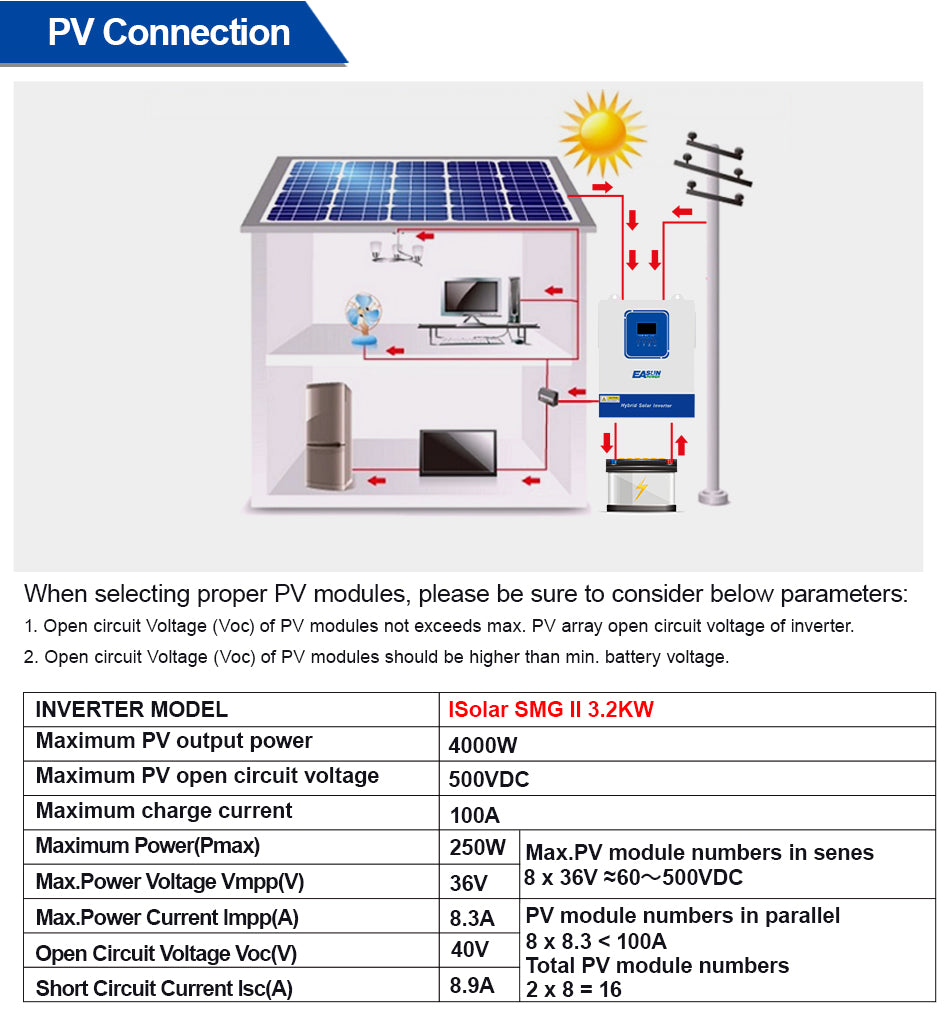

SOLAR CHARGER & AC CHARGER



Solar Charger Type

MPPT

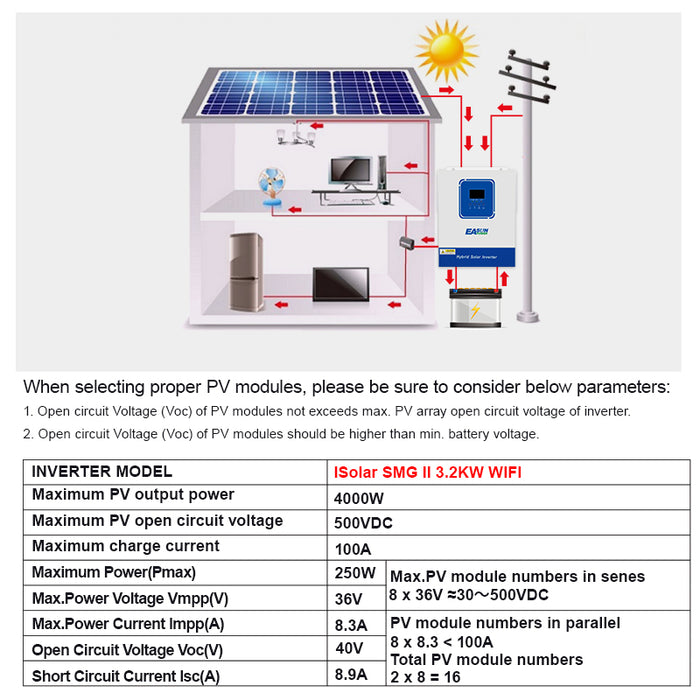

Max.PV Array Power

4000W



Max.PV Array Open Circuit Voltage

500VDC



PV Array MPPT Voltage Range

30VDC-500VDC



Max.Solar Input Current

15A



Max.Solar Charge Current

100A



Max.AC Charge Current

60A



Max.Charge Current (PV+AC)

100A



PHYSICAL



Dimensions,D x W x H(mm)

330*278*98



Package Dimensions,D x W x H(mm)

400*365*174



Net Weight(Kg)

3.95



Communication Interface

RJ45 For WiFi



ENVIRON MENT



Operating Temperature Range

(-10C to 50C)



Storage Temperature

(-15C ~ 50C)



Humidity

5% to 95% Relative Humidity ( Non-condensing )
