Easun Power 6048 MPPT Solar Charger Controller

Ahorre $32.50 Ahorre $32.50
Precio original $129.00
Precio original $129.00 - Precio original $129.00
Precio original $129.00
Precio actual $96.50
$96.50 - $96.50
Precio actual $96.50
Ship From: China
Request a quote

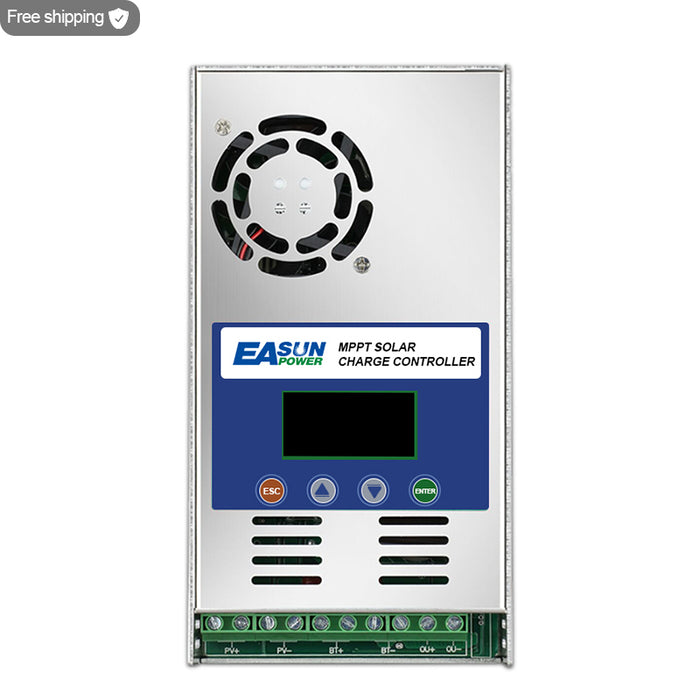

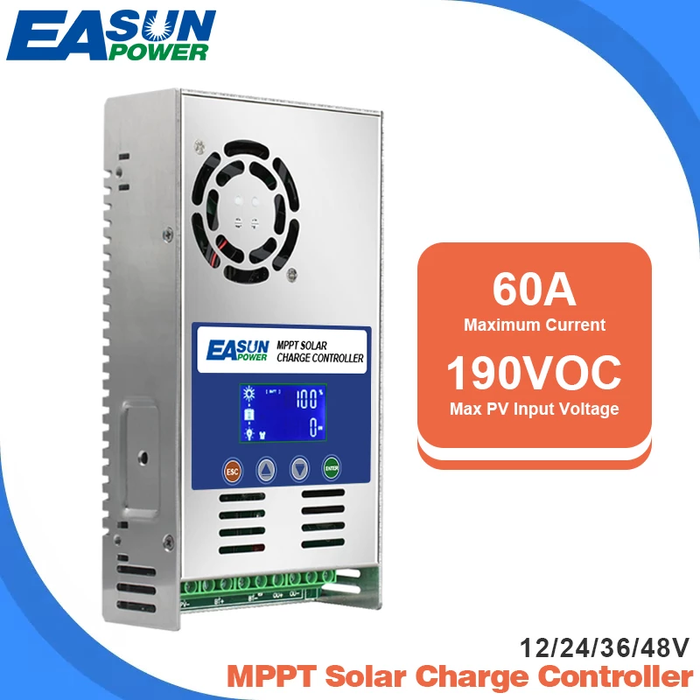

EASUN POWER Solar Charger Controller MPPT 60A and solar panel solar charge regulator 12V 24V 36V 48V Battery PV Input 190VOC

Features:

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

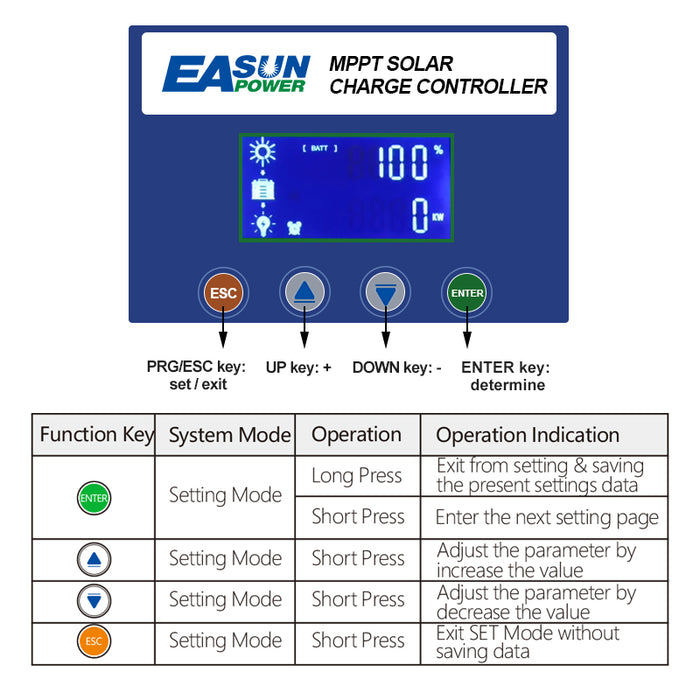

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery



you can Put two pieces60Ain parallel ,So total isMPPT 120A

Support unlimited parallel connection

Item

Parameter

Models

IChargerMPPT6048

Chargingmode

3-stage:constantcurrent(MPPT),constantvoltage,floating

SystemVoltage

12/24/36/48/Auto

MaxPVInputPower

720W/12V; 1440W/24V2160W/36V; 2880W/48V

MaxPVInput Voltage

190Voc



Batteryvoltageautomaticrecognition

12Vsystem(DC8.7V-DC15.5V);24Vsystem(DC16V-DC31V)

36Vsystem(DC33V-DC41V);48Vsystem(DC42V-DC64V)

Overchargingprotectionvoltage

12V system (16V);24V system (32V)36Vsystem(48V);48Vsystem(64V)

Limitedcurrentprotection

61A

Maxefficiency

≥98.1%

PVutilization

≥99%

AutoTemperatureCompensation

-3mV/2V/ºC

ProtectionFunction

Temperatureprotection

75℃

Fan-ontemperature

>45℃

Fan-offtemperature

<40℃

Properties

Size(mm)

214x115x50

Netweight(Kg)

1.1

Grossweight(Kg)

1.2

Electromagneticcompatibility

AccordtoEN61000,EN55022,EN55024

Enclosure

IP21

Environmentaltemperature

-20℃~+55℃

Storagetemperature

-40℃~+75℃

BatteryParameters

BatteryType

SystemVolt

EQU



GEL

Auto

14.2V



SEL

Auto

14.6V



FLD

Auto

14.8V



USE

Auto/12/24/36/48V

Definedbyusers



LI

12/24/36/48V

---





ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe

controller.)



12Vsystem(360W)



24Vsystem(720W)



36Vsystem(1080W)



48Vsystem(1440W)



ICharger-MPPT-6048 manual
